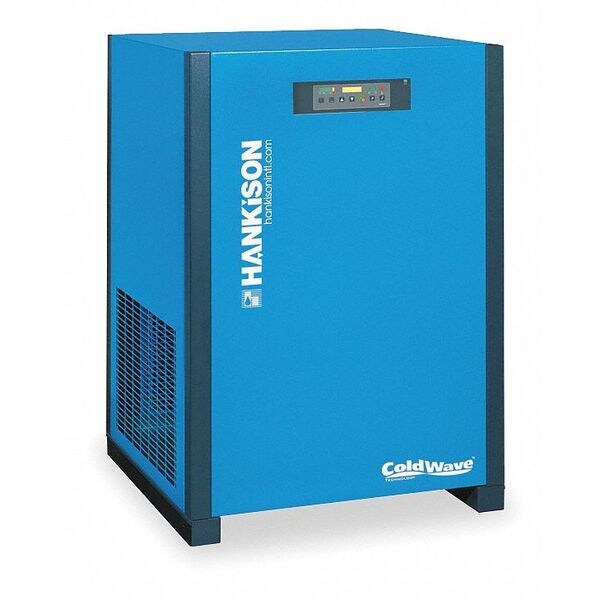

Compressed Air Dryer, 600 CFM, 125 HP, 460V

HANKISON| Zoro #: G0604642| Mfr #: HPRP600

$13,659.12 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0604642 Mfr #: HPRP600
Max. Ambient Temp.: 110 Degrees FItem: Compressed Air Dryer
Includes: A Coalescing Filter and Auto DrainMax. Pressure: 232 psi
Full Load Amps: 7.1Voltage: 460VAC
Finish: Epoxy Powder CoatedRefrigerant: R-134A
CFM: 600Power: 2.91kW
Pipe Size: 2-1/2" NPTOverall Width: 32"
Overall Height: 58"Max. Inlet Temp.: 120 Degrees F
Phase: 3Dew Point: 39 Degrees F
Overall Depth: 42"Heat Exchanger Material: 304 Stainless Steel
Max. Air Compressor HP: 125ISO Class: 5
Country of Origin (subject to change): United States

Product Description

Compressed Air Dryer, ISO Class 5, 600 CFM, Dew Point 39 Degrees F, Max. Air Compressor HP 125, Max. Pressure 232 psi, Pipe Size 2-1/2 In. NPT, Voltage 460VAC, 3 Phase, 7.1 Full Load Amps, Power 2.91kW, Max. Inlet Temp. 120 Degrees F, Max. Ambient Temp. 110 Degrees F, R-134A Refrigerant, Epoxy Powder Coated Finish, 304 Stainless Steel Heat Exchanger Material, Overall Height 58 In., Overall Width 32 In., Overall Depth 42 In., Includes A Coalescing Filter and Auto Drain
