  11. Refrigerated Compressed Air Dryer, 115V
No Product Image Available

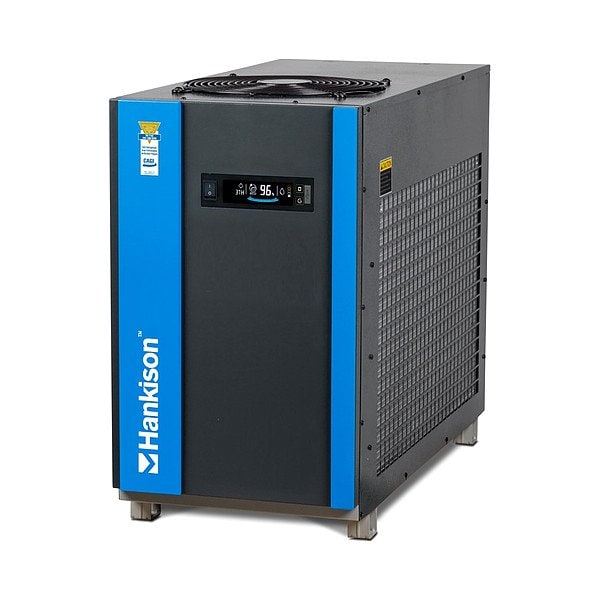

Refrigerated Compressed Air Dryer, 115V

  • Mfr # FLX1.1

  • Zoro # G606171439

product price: $3,442.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.

Key Features

Includes
Compressor On Indicator, Dew Point Status Indicator, Dryer On Indicator, Energy Savings % Indicator, On/Off Switch
Phase
Single
Voltage
115V AC
Overall Height
30 in
Overall Width
14 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLX1.1
Zoro #
G606171439
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Height
30 in
Overall Width
14 in
Overall Depth
24 in
Air Inlet Size
1 in
Air Outlet Size
1 in

Details

Item
Cycling Refrigerated Compressed Air Dryer
Includes
Compressor On Indicator, Dew Point Status Indicator, Dryer On Indicator, Energy Savings % Indicator, On/Off Switch
Phase
Single
Voltage
115V AC
ISO Class
5
Refrigerant
R-134A
Air Outlet Type
NPT
Finish
Powder Coated
Maximum Operating Temperature
100 Degrees F
Maximum Flow Rate
75 scfm
Features
Linear Load Matching is Achieved from 0% Up to 100% Demand, Minimal Energy Savings are Realized from 100% Down to 0% Inlet Air Load, Non-Cycling Dryers Operate with the Refrigeration Compressor Running Continuously Regardless of Inlet Load Conditions, Provides Cost-Effective Energy Savings by Matching Electrical Power Consumed in Direct Proportion to Air Demand
Weight
120 lb
Series
FLEX
Heat Exchanger Material
Stainless Steel
Maximum Ambient Temperature
100 Degrees F
Dew Point
39 Degrees F
Pressure Drop
2.9 psi
Air Inlet Type
NPT
Cycling Type
Non-Cycling
Power
0.43 kW
Standards
CSA Certified
Housing Material
Sheet Steel
Housing Color
Gray
Filter Included
No
Drain Included
Yes
Air Inlet Gender
Female
Frequency
60 Hz

Description

Cycling Refrigerated Compressed Air Dryer, ISO Class 5, Maximum Flow Rate 75 scfm, Voltage 115V AC, Phase Single, Air Inlet Size 1 in, Air Inlet Type NPT, Air Inlet Gender Female, Maximum Operating Temperature 100 Degrees F, Power 0.43 kW, Dew Point 39 Degrees F, Series FLEX, Air Outlet Size 1 in, Air Outlet Type NPT, Cycling Type Non-Cycling, Drain Included Yes
