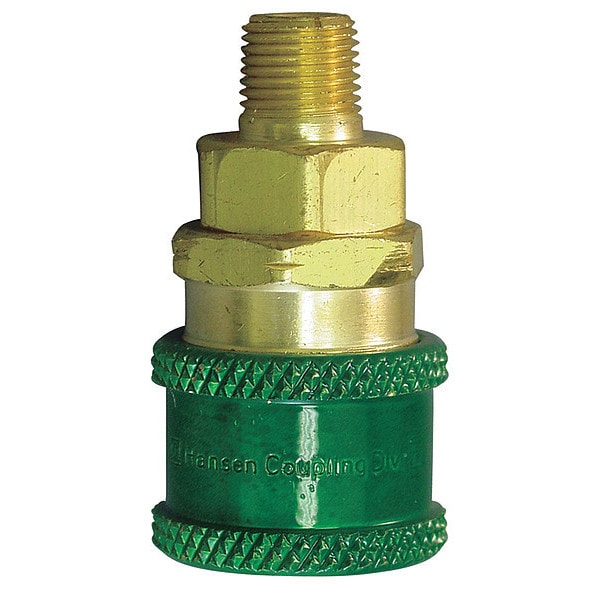

Coupler Body, (M)NPT, 1/4, Brass

The HANSEN - GR604RSL is a quick coupler body for use in oxygen service applications, when used with compatible mating components. It serves as the stationary half of a quick-connect fitting that receives 600 Series plugs and features an internal valve that opens when the plug is engaged, is configured for connection and disconnection without additional tools (when used with compatible mating components) in pneumatic and fluid systems. Constructed from brass with a green color code for identification. This fitting has a maximum flow rating of 21 scfm (when used under specified system conditions). is rated for operation at temperatures from -40°F to 250°F.

Key Features:

• Material: Brass construction with a brass finish; compatible with oxygen service applications when used with compatible gases and components.
• Connection: Male hose fitting with 9/16"-18 UNF thread size and sleeve-type coupling locking mechanism.
• Pressure rating: maximum working pressure 1,500 psi at 70°F; maximum operating pressure 100 psig.
• Sealing: Buna-N seals are used to provide a seal for fluid containment.
• Application: rated for oxygen service; compatible with 600 Series plugs.
• Temperature range: rated for operation from -40°F to 250°F.
• Color code: Green for visual identification and matching to mating components.
