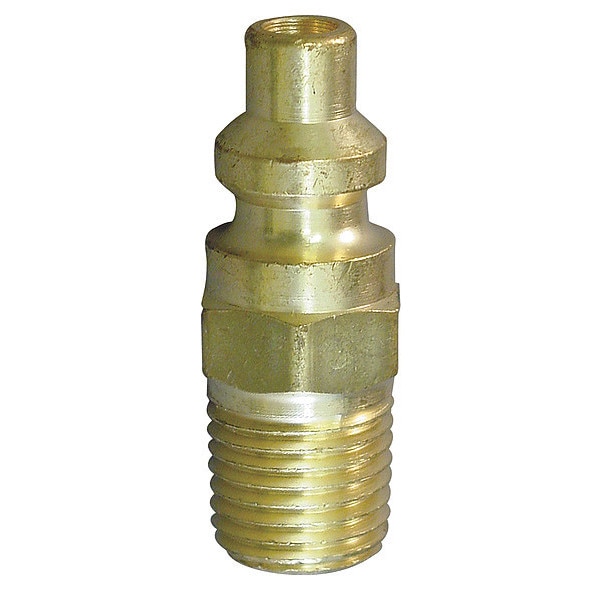

Coupler Plug, UNF, 1/4, Brass
Mfr # 04R
Zoro # G2281898
product price: $8.99
/eaKey Features
Material
Brass
Hose Fitting Gender
Male
Connection Type
UNF
Finish/Coating
Brass
Max. Flow Rate
157 gpm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
04R
Zoro #
G2281898
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
9/16"
Body Size - Quick Connect Air Couplings
1/4 in
Connection Size
9/16 in
Details
Item
Quick Coupler Plug
Material
Brass
Hose Fitting Gender
Male
Connection Type
UNF
Finish/Coating
Brass
Max. Flow Rate
157 gpm
Coupling Locking Type
Sleeve
Seal Material
Buna-N
Temp. Range
-40 Degrees to 250 Degrees F
Application
Standard and Oxyacetylene Service
Color Code
Green
Standards
OSHA Compliant
For Fuel Type
Compressed Air, Other Gases, Oxygen
For Use With
600 Series Sockets
Maximum Operating Temperature
250 Degrees F
Maximum Operating Pressure
100 psig
Max. Working Pressure @ 70 F
1,500 psi
Thread Direction
Right Hand
Minimum Operating Temperature
-40 Degrees F
Hose Connection Thread Direction
Right Hand
Description
Quick Coupler Plug, Locking Type Sleeve, Material Brass, Finish Brass, Pipe Size 9/16 in, Hose Connection UNF, Body Size 1/4 in, Max. Flow 21 cfm, Max. Pressure 1,500 psi, Color Code Green, Temp. Range -40 Degrees to 250 Degrees F, Application Standard and Oxyacetylene Service, Standards OSHA Compliant
