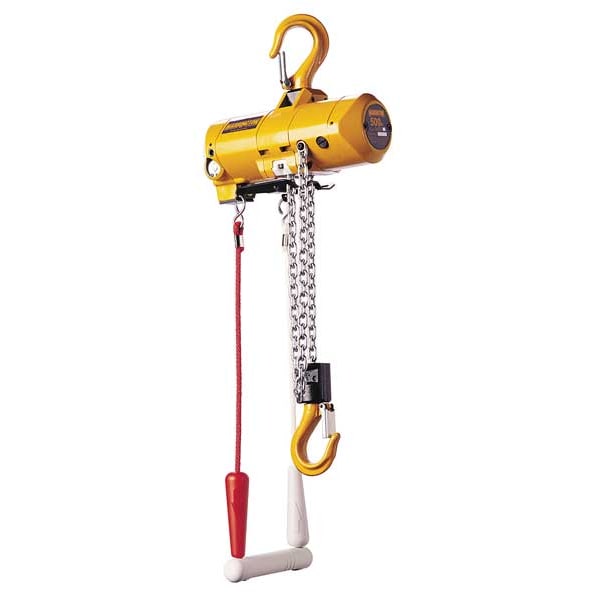

Air Chain Hoist, 500 lb. Cap., 20 ft. Lift
Mfr # AH500C-20
Zoro # G6589432
product price: $3,650.99
/ea
Free Shipping & Returns
Key Features
Load Capacity
500 lb
Housing Length
9 11/16 in
Hoist Lift
20 ft
Lift Speed
32 fpm
Air Consumption
29 scfm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AH500C-20
Zoro #
G6589432
UPC #
-
Country of Origin
Japan
Dimensions
Housing Length
9 11/16 in
Chain Length
21 ft
Manufacturers Warranty Length
1 yr
Housing Width
4 in
Inlet Size
3/8 in NPT
Overall Length
9-11/16"
Overall Width
6"
Body Width
4 in
Mfr. Warranty Length
1 yr
Body Depth
9 11/16 in
Maximum Lifting Length
20 ft
Body Length
9 11/16 in
Minimum Retracted Length
12 in
Air Inlet Size
3/8 in
Lifting Hook Opening Width
29/32 in
Description
Air Chain Hoist, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 500 lb, Fixed Lift Speed 32 fpm, Air Inlet Type NPT, Controls Pull Cord, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 12 in, Maximum Air Pressure 90 psi, Maximum Lifting Length 20 ft, Maximum Air Consumption 34 cfm, Programmable Non-Programmable, Air Inlet Gender Female, Air Inlet Size 3/8 in, Body Depth 9 11/16 in, Body Length 9 11/16 in
