Shop HARRINGTON

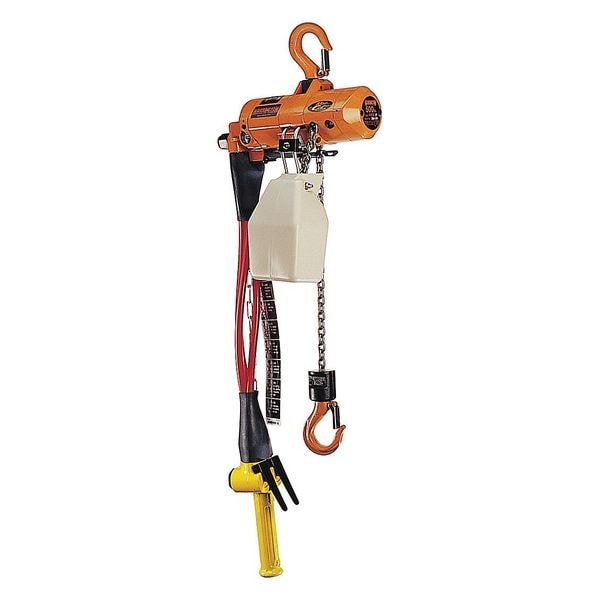

Air Chain Hoist, AH, 10 ft. Lift, 28 fpm

  • Mfr # AH300P-10

  • Zoro # G2373388

product price:
$
3,803.99
/ea
Free Shipping & Returns

Key Features

Finish
Acrylic Resin Paint
Overall Width
2-5/16"
Control
Pendant
Reeving
1
Hoist Lift
10 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AH300P-10
Zoro #
G2373388
UPC #
-
Country of Origin
Japan
Item
Air Chain Hoist
Finish
Acrylic Resin Paint
Control
Pendant
Reeving
1
Hoist Lift
10 ft
Brake
Disc Motor System
Color
Yellow
Noise Level
85 dB
Hoist Mount
Hook Mounted - No Trolley
Series
AH
Air Consumption
19 to 34 scfm
Trolley Configuration
Hook Mounted - No Trolley
Includes
Case Hardened Load Chain, Chain Container
Load Capacity
300 lb
Min. Between Hooks
12 in
Lift Speed
28 fpm
Air Pressure
90 psi
Standards
ASME B30.16, ASME HST-5, EU ATEX
Headroom
12 in
Controls
Pendant
Includes Brake
Brake Included
Air Inlet Type
NPT
Air Inlet Gender
Female
Number of Load Chains
1
Number of Reeves
1
Maximum Air Consumption
34 cfm
Maximum Air Pressure
90 psi
Minimum Air Pressure
60 psi
Chain Finish
Nickel Plated
Body Material
Cast Aluminum
Sound Level
85 dB
Programmable
Non-Programmable
Maximum Lifting Capacity
300 lb
Brake Type
Disc
Minimum Air Consumption
19 scfm
Includes Clutch
Clutch Not Included
Included Components
Chain Container
Body Finish
Painted
Fixed Lift Speed
28 fpm
Chain Grade
Grade 80
Lifting Hook Type
Swivel Hook with Safety Latch
Lifting Hook Material
Carbon Steel
Mount Type
Hook Mounted - No Trolley

Description

Air Chain Hoist, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 300 lb, Fixed Lift Speed 28 fpm, Air Inlet Type NPT, Controls Pendant, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 12 in, Maximum Air Pressure 90 psi, Maximum Lifting Length 10 ft, Maximum Air Consumption 34 cfm, Programmable Non-Programmable, Air Inlet Gender Female, Air Inlet Size 3/8 in, Body Depth 11 5/16 in, Body Length 11 5/16 in
