Shop HARRINGTON

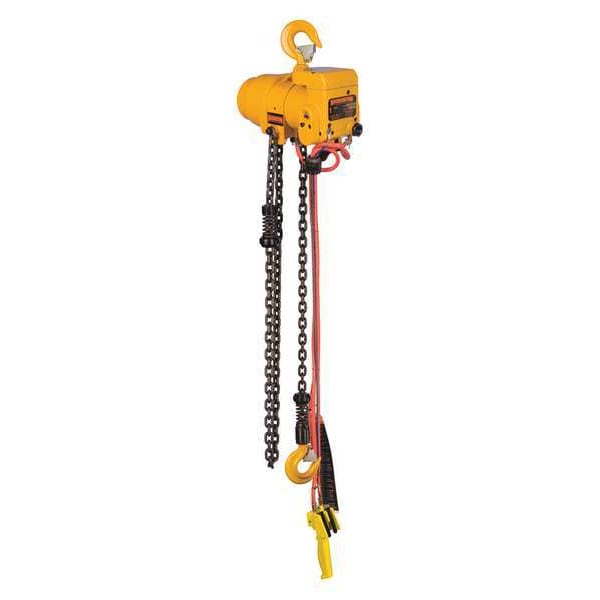

Air Chain Hoist, Push Trolley, 1000 lb.

  • Mfr # TCRP500C-10

  • Zoro # G2438138

product price:  $4,354.99
/ea
Free Shipping & Returns

Key Features

Finish
Powder Coated
Overall Width
7-1/5"
Manufacturers Warranty Length
1 yr
Reeving
1
Hoist Mount
Push Trolley
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCRP500C-10
Zoro #
G2438138
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
7-1/5"
Manufacturers Warranty Length
1 yr
Housing Width
6 29/32 in
Housing Length
13 1/2 in
Inlet Size
1/2 in NPT
Body Width
8 in
Overall Length
13-1/2"
For Max. Beam Flange Width
4 in
For Min. Beam Flange Width
2 9/32 in
Body Length
7 3/16 in
Minimum Retracted Length
18 19/32 in
Lifting Hook Opening Width
1 3/16 in
Maximum Lifting Length
10 ft
Chain Length
11 ft
Mfr. Warranty Length
1 yr
Air Inlet Size
3/4 in
For Min. Beam Flange Height
3 3/16 in
For Minimum Beam Height
3 3/16 in
Minimum Radius Curve
13 13/16 in
Wire Rope Length
13-1/2"

Details

Item
Air Chain Hoist
Finish
Powder Coated
Reeving
1
Hoist Mount
Push Trolley
Standards
ASME B30.16, ASME HST-5
Lift Speed
37 fpm
Fits Beam Flange W
2-9/32 in to 4 in
Control
Pull Cord
Brake
Self Adjusting
Hoist Lift
10 ft
Air Consumption
48 scfm
Load Capacity
1,000 lb
Includes
Chain Container
Air Pressure
90 psi
Noise Level
80 dB
Min. Between Hooks
18 5/8 in
Trolley Configuration
Push Trolley
Color
Yellow
Headroom
18 3/5 in
Included Components
Chain Container
Programmable
Non-Programmable
Lifting Hook Type
Swivel Hook with Safety Latch
Body Material
Cast Iron
Sound Level
80 dB
Controls
Pull Cord
Includes Clutch
Clutch Not Included
Chain Material
Black Carbon
Air Inlet Type
NPT
Mount Type
Push Trolley
Includes Brake
Brake Included
Minimum Air Pressure
60 psi
Lifting Hook Material
Carbon Steel
Fixed Lift Speed
57 fpm
Number of Load Chains
1
Air Inlet Gender
Female
Brake Type
Disc
Body Finish
Powder Coated
Minimum Air Consumption
48 cfm
Maximum Air Pressure
90 psi
Resistance Properties
Weather Resistant
Chain Grade
Grade 80
Number of Reeves
1
Maximum Lifting Capacity
1,000 lb
Maximum Air Consumption
57 cfm

Description

Air Chain Hoist, Mount Type Push Trolley, Maximum Lifting Capacity 1,000 lb, Fixed Lift Speed 57 fpm, Air Inlet Type NPT, Controls Pull Cord, For Minimum Beam Flange Width 2 9/32 in, For Maximum Beam Flange Width 4 in, Headroom 18 3/5 in, Maximum Air Pressure 90 psi, Maximum Lifting Length 10 ft, Maximum Air Consumption 57 cfm, Programmable Non-Programmable, Air Inlet Gender Female, Air Inlet Size 3/4 in, Body Depth Not Applicable, Body Length 7 3/16 in, Body Material Cast Iron, Body Width 8 in
