Shop HARRINGTON

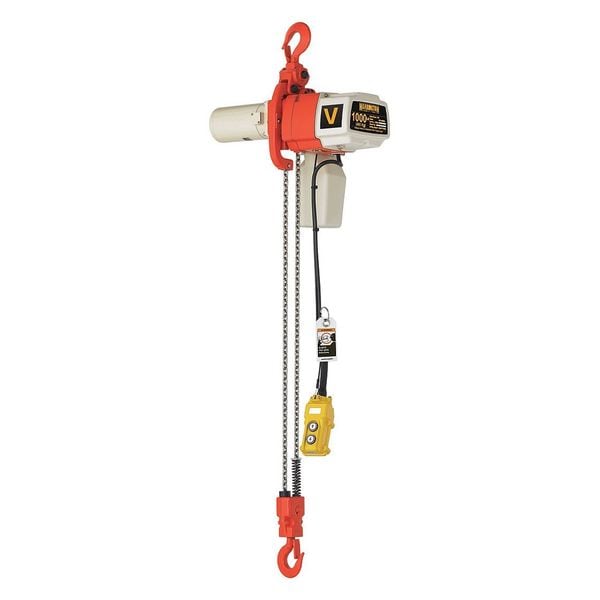

Electric Chain Hoist, 1,000 lb, 20 ft, Hook Mounted - No Trolley, 120V AC, White and Orange

  • Mfr # ED1000V-20

  • Zoro # G4154425

product price:
$
4,882.99
/ea
Free Shipping & Returns

Key Features

Color
White and Orange
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ED1000V-20
Zoro #
G4154425
UPC #
-
Country of Origin
Japan
Color
White and Orange
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
Lift Speed
8/22 fpm
Load Capacity
1,000 lb
Min. Between Hooks
20 1/2 in
Motor HP
0.8 hp
Phase
1
Standards
ASME B30.16, ASME HST-1, NFPA 70
Voltage
120V AC
Fits Brand
Harrington Hoists Inc
Clutch
Friction
Trolley Configuration
Hook Mounted - No Trolley
Amps @ Low Volts
10 A
Number of Speeds
Variable
Hz
60
Reeving
2
Item
Electric Chain Hoist
Lubrication
Grease
Classification
H2
Brake
Weston and Regenerative
Control
Push Button Pendant
Control Cord
17 ft
Finish
Powder Coated
Thermal Protection
Not Available and Not Included
Features
Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Smart Speed Technology, Standard Double-Braking System
Body Material
Aluminum
Programmable
Programmable by Internal Controls
Chain Finish
Nickel Plated
Number of Load Chains
1
Maximum Lift Speed
22 fpm
Includes Clutch
Clutch Included
Duty Classification
H2
Maximum Lifting Capacity
1,000 lb
Current at Max. Voltage
10 A
Clutch Type
Friction Clutch
Included Components
Chain Container, Pendant, Safety Latch Hook
Current at Min. Voltage
10 A
Resistance Properties
Wear Resistant
Mount Type
Hook Mounted - No Trolley
Brake Type
Weston Style Load Brake
Lifting Hook Type
Swivel Hook with Safety Latch
Hoist IP Rating
IP54
Includes Brake
Brake Included
Number of Reeves
2
Headroom
20 1/2 in
Overload Protection Included
No
Starts and Stops per Hour
180
Body Finish
Powder Coated
Minimum Lift Speed
8 fpm
Controls
Push Button Pendant
Lifting Hook Material
Carbon Steel
Motor Horsepower
3/4 hp
Pendant IP Rating
IP65
Operating Voltage
120V AC
1st Layer Load Capacity
1000 lb

Description

Electric Chain Hoist, Duty Classification H2, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 1,000 lb, Number of Speeds Variable, Programmable Programmable by Internal Controls, Fixed Lift Speed Not Applicable, Minimum Lift Speed 8 fpm, Maximum Lift Speed 22 fpm, Trolley Speed Not Applicable, Maximum Lifting Length 20 ft, Current at Minimum Voltage 10 A, Current at Maximum Voltage 10 A, Motor Horsepower 3/4 hp, Operating Voltage 120V AC, Headroom 20 1/2 in
