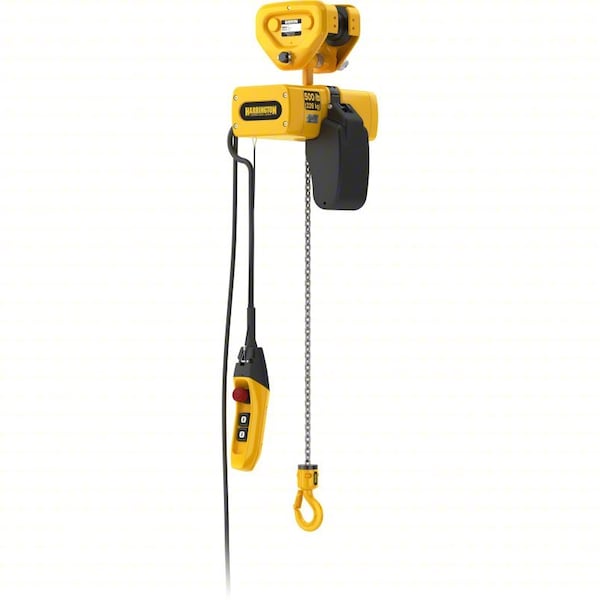

Harrington Electric Chain Hoist, 1000 lb cap. EMP005C-10 - main

Electric Chain Hoist, 1000 lb cap.

  • Mfr # EMP005C-10

  • Zoro # G009833804

product price: $3,347.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Phase
3
Standards
ASME, FEM, ISO, UL 1340/CSA 22.2
Voltage
230V AC
Chain Length
22 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EMP005C-10
Zoro #
G009833804
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
22 ft
Body Depth
9 13/32 in
Body Width
11 1/2 in
For Minimum Beam Height
3 1/2 in
Body Length
11 1/2 in
Minimum Retracted Length
14 5/16 in
For Max. Beam Flange Width
4 in
Controller Cord Length
8 3/16 ft
Maximum Lifting Length
10 ft
Lifting Hook Opening Width
29/32 in
Mfr. Warranty Length
5 yr
Minimum Radius Curve
43 5/16 in
For Min. Beam Flange Width
2 9/32 in

Details

Color
Yellow
Phase
3
Standards
ASME, FEM, ISO, UL 1340/CSA 22.2
Voltage
230V AC
Item
Electric Chain Hoist
Thermal Protection
Included
Number of Speeds
1
Current at Min. Voltage
1.4 A
Programmable
Non-Programmable
Pendant IP Rating
IP65
Chain Grade
Grade 80
Overload Protection Included
Yes
Maximum Lifting Capacity
1,000 lb
Trolley Wheel Material
Steel
Duty Classification
H4
Number of Reeves
2
Chain Finish
Nickel Plated
Hoist IP Rating
IP65
Current at Max. Voltage
1.4 A
Resistance Properties
Corrosion Resistant
Motor Horsepower
3/8 hp
Controls
Push Button Pendant
Fixed Lift Speed
8 fpm
Includes Clutch
Clutch Included
Chain Material
Nickel Plated
Features
Fits Tapered or Flat-Flanged Beams, Upper Limit Switch, Non-Drip, Grease Packed Gear Box, Solid State Relay Board, Unique Chain Guide
Brake Type
Electromagnetic
Clutch Type
Friction Clutch
Included Components
Chain Container, Pendant, Rubber Bumpers
Lifting Hook Type
Hook with Safety Latch
Headroom
14 5/16 in
Mount Type
Push Trolley
Includes Brake
Brake Included
Number of Load Chains
1
Lifting Hook Material
Steel
For Outdoor Use
Yes
Body Material
Die-Cast Aluminum
Starts and Stops per Hour
300
Operating Voltage
230V AC

Description

Electric Hoists
