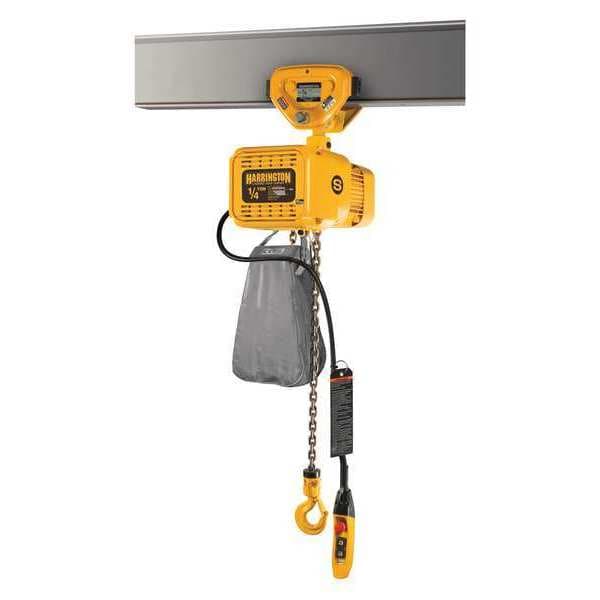

Electric Chain Hoist, 500 lb, 20 ft, Push Trolley, 230V AC, Yellow
Mfr # NERP003SD-20 / 230v
Zoro # G6410591
product price:Â
$
4,149.99
/ea
Free Shipping & Returns
Key Features
Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Push Trolley
Includes
10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NERP003SD-20 / 230v
- Zoro #
- G6410591
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Manufacturers Warranty Length
- 10 yr Brake Warranty, 3 yr
- Housing Width
- 13 5/8 in
- Fits Beam Height
- 3 in
- Housing Length
- 21 in
- Housing Depth
- 6 5/8 in
- Maximum Lifting Length
- 20 ft
- For Min. Beam Flange Width
- 2 9/32 in
- Trolley Wheel Diameter
- 3 1/5 in
- Minimum Retracted Length
- 15 19/32 in
- Body Width
- 13 5/8 in
- Body Depth
- 6 5/8 in
- Controller Cord Length
- 16 ft
- For Max. Beam Flange Width
- 4 in
- For Minimum Beam Height
- 3 in
- Minimum Radius Curve
- 43 5/16 in
- Body Length
- 21 in
- Mfr. Warranty Length
- 1 yr
- Lifting Hook Opening Width
- 1 3/32 in
Description
Electric Chain Hoist, Duty Classification H4, Mount Type Push Trolley, Maximum Lifting Capacity 500 lb, Number of Speeds 2, Programmable Programmable by VFD, Fixed Lift Speed Not Applicable, Minimum Lift Speed 6 fpm, Maximum Lift Speed 36 fpm, Trolley Speed Not Applicable, Maximum Lifting Length 20 ft, Current at Minimum Voltage 3.6 A, Current at Maximum Voltage 1.8 A, Motor Horsepower 3/4 hp, Operating Voltage 230V AC, Headroom 15 19/32 in, For Minimum Beam Height 3 in
