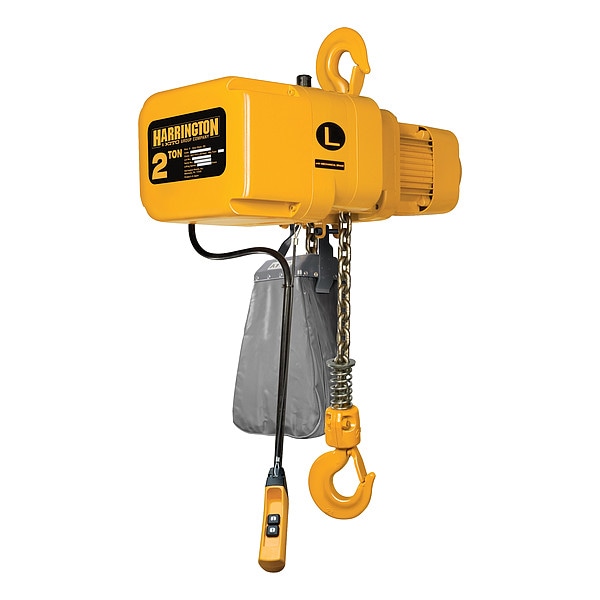

Harrington Extended Lift Electric Chain Hoist NER020L-30 - main

Extended Lift Electric Chain Hoist

  • Mfr # NER020L-30

  • Zoro # G213328233

product price: $5,110.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Color
Yellow
Phase
3
Standards
ASME H4, FEM 2m or 1Am, ISO M5 or M4, UL Listed
Voltage
208-230/460V AC
Thermal Protection
Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NER020L-30
Zoro #
G213328233
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
33 ft
Body Width
11 11/16 in
Lifting Hook Opening Width
1 19/32 in
Controller Cord Length
8 3/16 ft
Mfr. Warranty Length
10 yr (Hoist Brake)
Maximum Lifting Length
30 ft
Body Depth
25 13/32 in

Details

Color
Yellow
Phase
3
Standards
ASME H4, FEM 2m or 1Am, ISO M5 or M4, UL Listed
Voltage
208-230/460V AC
Thermal Protection
Included
Number of Speeds
1
Trolley Speed
N/A - No Motorized Trolley
Item
Extended Lift Electric Chain Hoist
Current at Min. Voltage
8.6 A
Maximum Lift Speed
14 fpm
Duty Classification
H4
Features
'The Guardian' Smart Brake Technology, Dual Speed VFD, Easy Access Suspension, Extended Chain Life, Friction Clutch and Load Brake, Green Initiative, High Air Flow, Limit Switches, Notched Hook and Latch System, Standard Count Hour Meter, Unique Load Sheave
Maximum Lifting Capacity
4,000 lb
Starts and Stops per Hour
360
Chain Finish
Nickel Plated
Headroom
22 19/32 in
Hoist IP Rating
IP55
Number of Load Chains
1
Chain Grade
Grade 80
Includes Brake
Brake Included
Chain Material
Alloy Steel
Motor Horsepower
2 3/8 hp
Current at Max. Voltage
4.2 A
Clutch Type
Friction Clutch
Body Material
Die-Cast Aluminum
For Outdoor Use
Yes
Resistance Properties
Corrosion Resistant, Wear Resistant
Includes Clutch
Clutch Included
Lifting Hook Material
Forged Carbon Steel
Pendant IP Rating
IP65
Brake Type
Electromagnetic
Fixed Lift Speed
14 fpm
Lifting Hook Type
Swivel Hook with Safety Latch
Minimum Lift Speed
14 fpm
Overload Protection Included
Yes
Controls
Push Button Pendant
Programmable
Non-Programmable
Mount Type
Hook Mounted - No Trolley
Operating Voltage
208-230/460V AC

Description

Extended Lift Electric Chain Hoist, Duty Classification H4, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 4,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 14 fpm, Minimum Lift Speed 14 fpm, Maximum Lift Speed 14 fpm, Trolley Speed N/A - No Motorized Trolley, Maximum Lifting Length 30 ft, Current at Minimum Voltage 8.6 A, Current at Maximum Voltage 4.2 A, Motor Horsepower 2 3/8 hp, Operating Voltage 208-230/460V AC, Headroom 22 19/32 in
