  13. Lever Chain Hoist, 4,000 lb Load Capacity, 5 ft Hoist Lift, 1 7/16 in Hook Opening
Shop All Lever Chain Hoists
Harrington

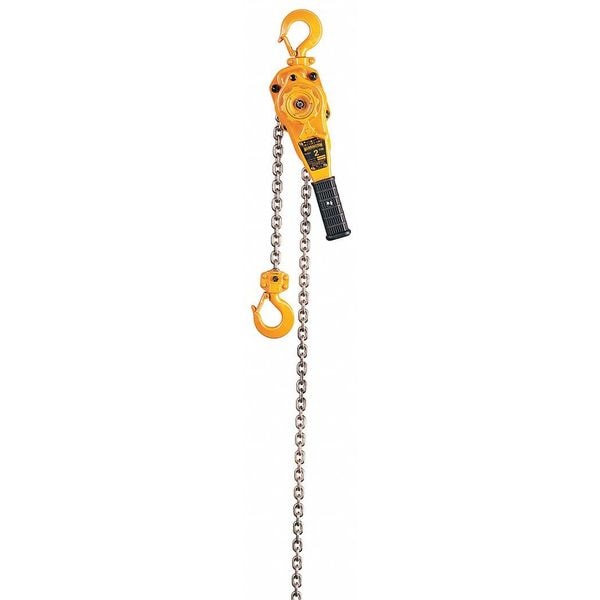

Lever Chain Hoist, 4,000 lb Load Capacity, 5 ft Hoist Lift, 1 7/16 in Hook Opening

product price: $729.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 4,000 lb
  • Includes Safety Latch Hooks
  • Chain Length 6 ft
  • Hook Opening 1 7/16 in
  • Lever Length 10 13/32 in
See all product information

Product Information

Dimensions

Chain Length 6 ft
Lever Length 10 13/32 in
Manufacturers Warranty Length 1 yr
Body Depth 6 13/16 in
Body Width 5 29/32 in
Minimum Retracted Length 14 13/16 in
Mfr. Warranty Length 1 yr
Maximum Lifting Length 5 ft
Lifting Hook Opening Width 1 13/32 in

Details

Item Lever Chain Hoist
Load Capacity 4,000 lb
Hoist Lift 5 ft
Includes Safety Latch Hooks
Hook Opening 1 7/16 in
Chain Nickel Plated
Standards ANSI/ASME B30.21, ANSI/ASME HST-3M
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection No
Pull to Lift Rated Load 59 lb
Min. Between Hooks 14 13/16 in
Brake Weston Style Load Brake
Finish Powder Coated
Reeving 1
Trolley Configuration Hook Mounted - No Trolley
Color Yellow
Features Patented Hardening Process, Safety Tip Hook and Latch, State-Of-The-Art Chain Technology, Structural Steel Side Plates
Chain Material Nickel Plated
Body Finish Powder Coated
Maximum Pulling Capacity 4,000 lb
Overload Protection Included No
Includes Clutch Clutch Not Included
Included Components Safety Latch Hooks
Power Source Lever
Lifting Hook Type Hook with Safety Latch
Includes Brake Brake Included
Number of Reeves 1
Maximum Lifting Capacity 4,000 lb
Lifting Hook Material Chromium-Molybdenum Alloy Steel
Number of Load Chains 1
Body Material Steel
Operating Position Horizontal, Vertical
Resistance Properties Corrosion Resistant, Wear Resistant
Mount Type Hook Mounted - No Trolley
Chain Grade Grade 100
Brake Type Weston Style
Chain Finish Nickel Plated
Headroom 14 13/16 in

Description

Lever Chain Hoist, Chain Length 6 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 14 13/16 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 4,000 lb, Maximum Lifting Length 5 ft, Mount Type Hook Mounted - No Trolley, Body Depth 6 13/16 in, Body Material Steel, Body Width 5 29/32 in, Brake Type Weston Style, Chain Grade Grade 100, Chain Material Nickel Plated, Color Yellow
