Shop All Manual Chain Hoists
Harrington

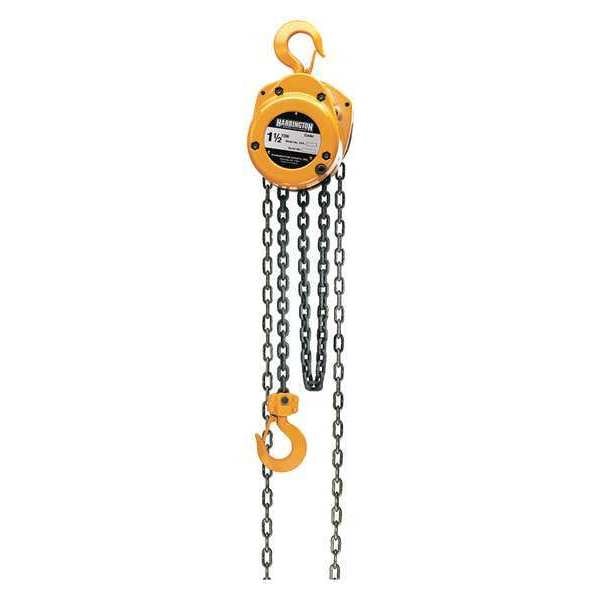

Manual Chain Hoist, 3000 lb., Lift 20 ft.

original price: $697.99
8% off
new price: $635.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 3,000 lb
  • Hoist Lift 20 ft
  • Hoist Mount Hook Mounted - No Trolley
  • Hoist Overload Protection No
  • Pull to Lift Rated Load 84 lb
See all product information

Product Information

Dimensions

Housing Length 17 5/16 in
Housing Width 8 in
Housing Depth 6 in
Manufacturers Warranty Length 2 yr
Minimum Retracted Length 17 5/16 in
Chain Length 21 ft
Maximum Lifting Length 20 ft
Body Depth 6 in
Mfr. Warranty Length 2 yr
Lifting Hook Opening Width 1 5/16 in
Body Width 8 in

Details

Load Capacity 3,000 lb
Hoist Lift 20 ft
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection No
Pull to Lift Rated Load 84 lb
Min. Between Hooks 17 1/4 in
Hook Opening 1 5/16 in
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Brake Weston Style Brake
Item Manual Chain Hoist
Includes Heat Treated Alloy Steel Hooks
Trolley Configuration Hook Mounted - No Trolley
Color Yellow
Features Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Included Components Safety Latch Hooks
Mount Type Hook Mounted - No Trolley
Headroom 17 5/16 in
Chain Material Manganese Alloy
Power Source Manual
Chain Finish Nickel Plated
Chain Grade Grade 100
Lifting Hook Type Hook with Safety Latch
Lifting Hook Material Carbon Steel
Resistance Properties Abrasion Resistant, Moisture Resistant, Wear Resistant
Includes Clutch Clutch Not Included
Overload Protection Included No
Includes Brake Brake Included
Body Material Die-Cast Aluminum
Number of Reeves 1
Operating Position Vertical
Number of Load Chains 1
Brake Type Weston Style
Maximum Lifting Capacity 3,000 lb

Description

Manual Chain Hoist, Chain Length 21 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 17 5/16 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 3,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 6 in, Body Material Die-Cast Aluminum, Body Width 8 in, Brake Type Weston Style, Chain Grade Grade 100, Chain Material Manganese Alloy, Color Yellow
