  5. High Pressure Gas Regulator, Industrial Air, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet

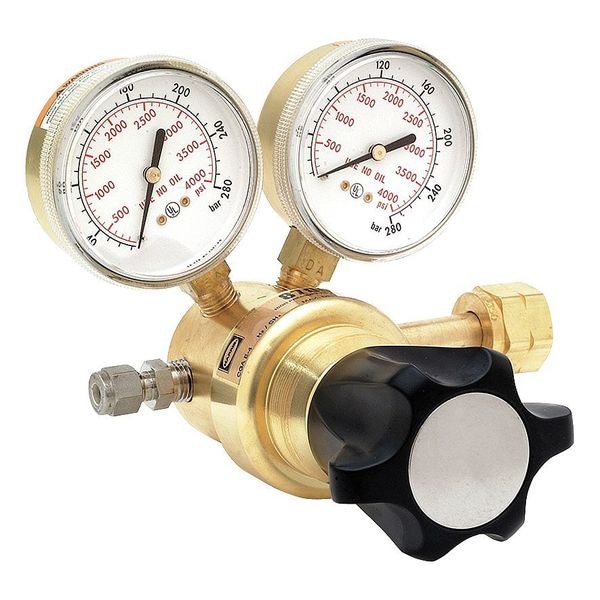

Harris High Pressure Gas Regulator, Industrial Air, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet KH1115 - main

High Pressure Gas Regulator, Industrial Air, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet

  • Mfr # KH1115

  • Zoro # G6804734

product price:  $733.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Industrial Air
Outlet Connection Size
1/4 in
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
1,500 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KH1115
Zoro #
G6804734
UPC #
725636316126
Country of Origin
United States

Dimensions

Outlet Connection Size
1/4 in
Gauge Diameter
2 1/2 in
Inlet Connection Size
0.965"-14
Overall Length
7-1/2"
Body Diameter
2 in
Overall Depth
6.21 in
Overall Width
6.98 in
Overall Height
5.01 in
Dedupe with CGA Number and Inlet Connection Size
CGA 590

Details

Item
High Pressure Gas Regulator
Compatible Gas Type
Industrial Air
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
1,500 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Diaphragm Material
Urethane
Delivery Pressure Range
0 to 1500 psi
Supply Pressure Gauge
4,000 psi
Delivery
0 to 1500 psi
Application
High Pressure Testing
Standards
CGA E-4, UL Listed
Regulator Application
High Pressure
Stages
Single Stage
Gauges Delivery Pressure
3000 psi
Includes
Harris Model 8700 Single Stage Regulator
Features
Charging Accumulators, Pressurizing Aircraft Struts
Type
Single Stage
Flow Coefficient
0.08
Control Type
Knob
Outlet Thread Direction
Right Hand
Regulator Series
HP 8700
Inlet Connection Type
NGO
Inlet Thread Direction
Left Hand
Outlet Connection Gender
Female
Body Finish
Chrome Plated
Helium Leak Integrity Rating
1.00 x 10^-9 cc/sec
Inlet Connection Gender
Female
Inlet Pressure (Maximum)
3,000 psig
Gas Purity Rating
99.9999 %
Bonnet Material
Brass
Seat Material
PCTFE
Outlet Connection Type
Tube Fitting
Seal Material
PCTFE
Filter Material
Nickel Plated Bronze
CGA Number
CGA 590

Description

High Pressure Gas Regulator, Mounting Type Cylinder, Number of Stages Single Stage, Compatible Gas Type Industrial Air, Control Type Knob, Maximum Inlet Pressure 3,000 psig, Inlet Connection Size 0.965 In.-14, Inlet Connection Gender Female, Inlet Connection Type NGO, Inlet Thread Direction Left Hand, Outlet Pressure (Maximum) 1,500 psig, Outlet Connection Gender Female, Outlet Connection Size 1/4 in, Outlet Connection Type Tube Fitting, Outlet Thread Direction Right Hand

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
