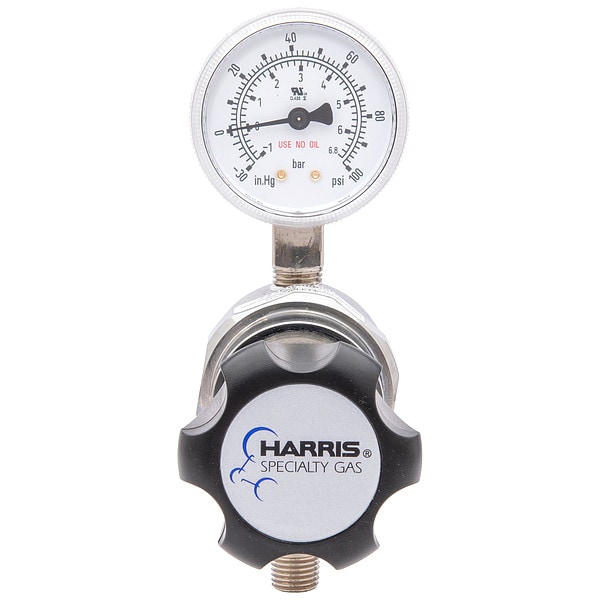

Harris

Regulator

product price: $299.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Chrome Plated Brass
  • Standards CGA E-4
  • Seal Material PTFE
  • Application High Purity Gas
  • Compatible Gas Type Argon, Carbon Dioxide, Helium, Nitrogen, Oxygen
See all product information

Product Information

Dimensions

Gauge Diameter 2 in
Outlet Connection Size 1/4 in
Inlet Connection Size 1/4 in

Details

Item High Purity Gas Regulator
Body Material Chrome Plated Brass
Standards CGA E-4
Seal Material PTFE
Application High Purity Gas
Compatible Gas Type Argon, Carbon Dioxide, Helium, Nitrogen, Oxygen
Inlet Connection Gender Female
Maximum Gauge Outlet Pressure 100 psig
Outlet Pressure (Maximum) 50 psig
Number of Stages Single Stage
Flow Coefficient 0.08
CGA Number CGA 300, CGA 510
Manufacturer Part Number 723C050000D
Inlet Pressure (Maximum) 3,000 psig
Control Type Knob
Diaphragm Material Stainless Steel
Features 1-11/16 in-316L Stainless Steel Diaphragm Eliminates Contamination from Diffusion or Outgassing, Designed to 1 x 10-9 cc/sec inboard Helium Leak Rate to Maintain Gas Purity Levels, External Relief Valve is Standard, One-Piece Encapsulated Seat Design with 10 micron Sintered Internal Filter to Protect the PTFE Teflon(R) Seat from Particulate Contamination
Outlet Connection Type FNPT
Bonnet Material Chrome Plated Brass
Body Finish Chrome Plated
Outlet Pressure (Minimum) 0 psig
Filter Material Bronze
Outlet Connection Gender Female
Regulator Series HP723C
Seat Material PTFE
Gas Purity Rating 99.999 %
Inlet Connection Type NPT
Helium Leak Integrity Rating 1.00 x 10^-9 cc/sec
Maximum Inlet Pressure 3,000 psig

Description

High Purity Gas Regulator, Mounting Type Pipeline, Number of Stages Single Stage, Compatible Gas Type Argon, Carbon Dioxide, Helium, Nitrogen, Oxygen, Control Type Knob, Maximum Inlet Pressure 3,000 psig, Inlet Connection Size 1/4 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Outlet Pressure (Maximum) 50 psig, Outlet Connection Gender Female, Outlet Connection Size 1/4 in, Outlet Connection Type FNPT, Gas Purity Rating 99.999 Percent
