  11. Cordset, 0.2m, Yellow, 26 AWG

This item is Discontinued.

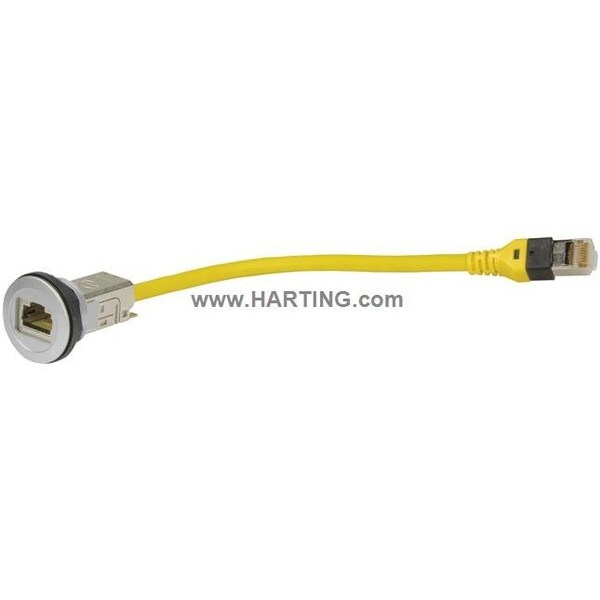

Harting Cordset, 0.2m, Yellow, 26 AWG 09454521501

Cordset, 0.2m, Yellow, 26 AWG (Discontinued)

  • Mfr # 09454521501
  • Zoro # G305285819
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09454521501
Zoro #
G305285819
UPC #
-
Country of Origin
Latvia

Dimensions

Cable Length
0.2 m
Wire Size
26 AWG

Details

Item
Cordset
End 1 Number of Pins
8
End 2 Number of Pins
8
IP Rating
IP20
End 1 Connection Type
RJ45
End 2 Connection Type
RJ45
Standards
China RoHS, DNV GL, ELV Status, PROFINET, RoHS, UL/CSA
Cable Jacket Material
PUR
End 1 Mounting Orientation
Straight
Cable Jacket Color
Yellow
Series
Har Port
Performance Category
Cat6
Maximum Operating Temperature
158 Degrees F
Shielded
Yes
Minimum Operating Temperature
-13 Degrees F
End 1 Gender
Male
Cable Type
Round
End 1 Material
Polyamide
Data Rate
10 Gbits
End 2 Material
Polyamide
End 2 Gender
Female
End 2 Mounting Orientation
Straight
Number of Wires
8
Specification
RJ45
Shielding
Fully shielded, 360° shielding contact
Material (hood/housing)
Polyamide (PA)
Colour (hood/housing)
Silver
PROFINET
Yes
Fixing
Screwable in cover plates
UL / CSA
UL 1863 DUXR.E470046 || CSA-C22.2 No. 182.4, No. 233-09 DUXR7.E470046
Mating cycles
≥750
Transmission characteristics
Cat. 6 Class E up to 250 MHz
Ambient temperature
-25 to +70°C
Approvals
DNV GL
Connection type
Jack to connector
Element
Service interfaces
Degree of protection acc. to IEC 60529
IP20

Description

Cordset, End 1 Coding Not Applicable, End 1 Number of Pins 8, End 1 Mounting Orientation Straight, End 1 Gender Male, End 1 Connection Type RJ45, End 2 Number of Pins 8, End 2 Mounting Orientation Straight, End 2 Gender Female, End 2 Connection Type RJ45, Cable Length 0.2 m, Cable Jacket Color Yellow, Cable Jacket Material PUR, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP20, Number of Wires 8
