DIN-Signal C096FPW-13, 2C1-2, PK 20
Mfr # 09032966861
Zoro # G2773790
product price: $344.99
/pk 20, $17.25/ea
Free Shipping & Returns
Key Features
Color
Pebble Gray
Insulation Material
Glass Fiber Filled Thermoplastic Resin
Current
2 A
Series
DIN 41612
Standards
UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
09032966861
Zoro #
G2773790
UPC #
-
Country of Origin
Germany
Details
Item
PCB Connector
Color
Pebble Gray
Insulation Material
Glass Fiber Filled Thermoplastic Resin
Current
2 A
Series
DIN 41612
Standards
UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Glass Fiber Filled Thermoplastic Resin
Description/Special Features
Straight
Approximate Amperage Rating - Grounding Braid
2 A
Green Environmental Attribute
Lead Free
Finish
Noble Metal over Ni (Mating Side); Ni (Termination side)
Max. Temp.
105°C
Connection Material
Copper Alloy
Sub-Category
Connectors
Terminal Type
Press-In
Number of Rows
3
Contact Finish
Noble Metal; Nickel Plated
Number of Contacts
96
Flammability Rating
UL 94 V-0
Description

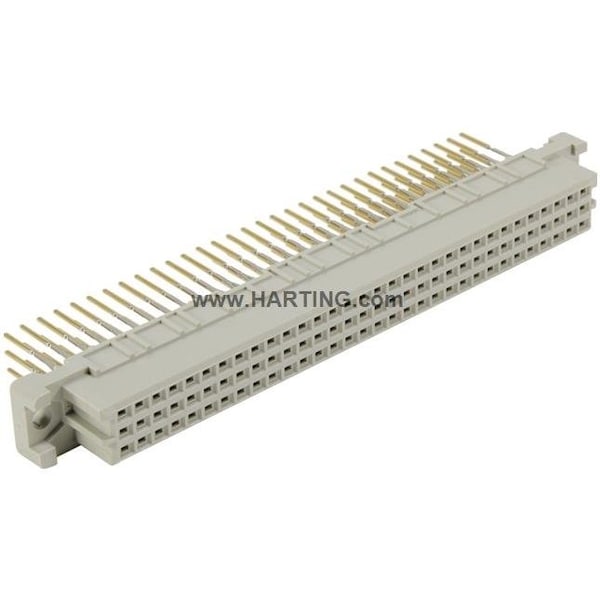

Connectors, Female connector, Press-in termination, Rated current: 2 A, Contacts: 96, Straight, Copper alloy, Noble metal, Mating side, Nickel plated
