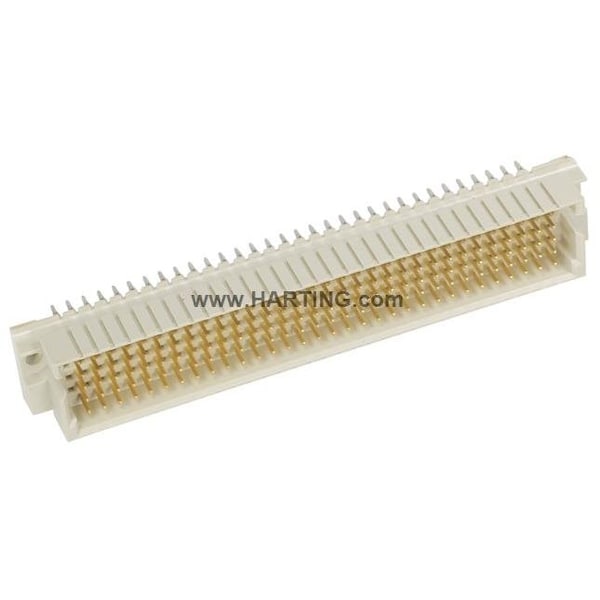

Din-Signal R5Row160Mp-5, 3C1-2, PK 50
Mfr # 02411602201
Zoro # G4052569
product price:Â $2,251.99
/pk 50, $45.04/ea
Free Shipping & Returns
Key Features
Color
Pebble Gray
Insulation Material
Glass Fiber Filled Thermoplastic Resin
Current
1 A
Series
DIN 41612
Standards
IEC 60603-2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 02411602201
- Zoro #
- G4052569
- UPC #
- -
- Country of Origin
- Unknown
Details
- Item
- PCB Connector
- Color
- Pebble Gray
- Insulation Material
- Glass Fiber Filled Thermoplastic Resin
- Current
- 1 A
- Series
- DIN 41612
- Standards
- IEC 60603-2
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- RoHS Compliant
- Yes
- Description/Special Features
- Straight
- Green Environmental Attribute
- Lead Free
- Sub-Category
- Connectors
- Terminal Type
- Press-In
- Material
- Glass Fiber Filled Thermoplastic Resin
- Connection Material
- Copper Alloy
- Max. Temp.
- 105°C
- Finish
- Noble Metal over Ni (Mating Side); Ni (Termination side)
- Approximate Amperage Rating - Grounding Braid
- 1 A
- Number of Rows
- 5
- Number of Contacts
- 160
- Contact Finish
- Noble Metal; Nickel Plated
- Flammability Rating
- UL 94 V-0
Description
DIN 41612 Connectors
