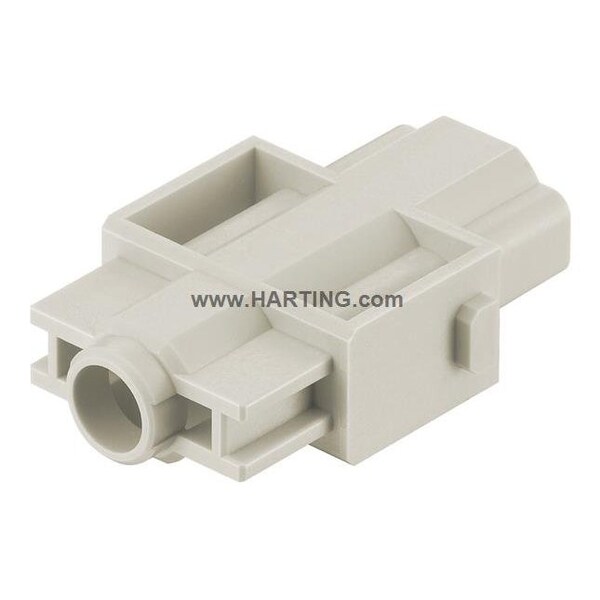

Han 100A Single Module, Female, PK 2
Mfr # 09140013131
Zoro # G2046719
product price: $28.55
/pk 2, $14.28/eaKey Features
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
830 V
Current
100 A
Maximum Operating Temperature
125 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 09140013131
- Zoro #
- G2046719
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Max. Single Wire Size
- 35 mm2
- Min. Single Wire Size
- 10 mm2
- Minimum Single Wire Size
- 8 AWG
- Maximum Single Wire Size
- 2 AWG
- For Minimum Wire Size - Solid
- 8 AWG
Details
- Item
- Connector Module
- Color
- Pebble Gray
- Insulation Material
- Polycarbonate
- Maximum Voltage
- 830 V
- Current
- 100 A
- Maximum Operating Temperature
- 125 Degrees C
- UL 94 Flammability Rating
- V-0
- Standards
- EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390
- Material
- Polycarbonate
- Connector Type
- Female
- Max. Voltage
- 830 V
- Max. Temp.
- 125°C
- Sub-Category
- Modules
- Green Environmental Attribute
- Pollution Degree 3
- Approximate Amperage Rating - Grounding Braid
- 100 A
- Series
- Han-Modular
- Current Rating
- 100 A
- Number of Contacts
- 1
- Flammability Rating
- UL 94 V-0
Description
Han® 100 A module, Single module, Female, Contacts: 1, Conductor cross-section: 10 ... 35 mm2, Rated current: 100 A, Polycarbonate (PC), RAL 7032 (pebble grey)
