Shop HARTING

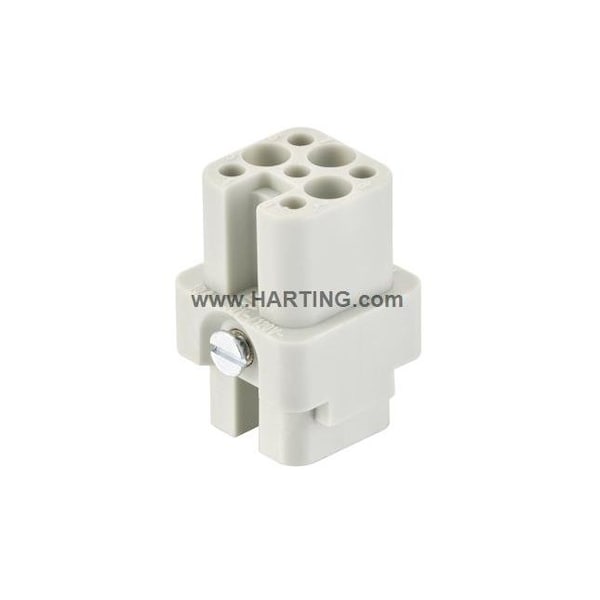

Han D 7 Pos. F Insert Crimp, PK 10

  • Mfr # 09210073101

  • Zoro # G2048843

product price:  $170.99
/pk 10, $17.10/ea
Free Shipping & Returns

Key Features

Color
Pebble Gray
Insulation Material
Polyamide
Maximum Voltage
50 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09210073101
Zoro #
G2048843
UPC #
-
Country of Origin
Germany

Dimensions

Min. Single Wire Size
0.14 mm2
Max. Single Wire Size
2.5 mm2
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
14 AWG

Details

Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polyamide
Maximum Voltage
50 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
HB
Terminal Type
Crimp
Max. Voltage
50 V
Approximate Amperage Rating - Grounding Braid
10 A
Sub-Category
Inserts
Material
Polyamide
Green Environmental Attribute
Pollution Degree 3
Max. Temp.
125°C
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076
Series
Han D
Connector Type
Female
Current Rating
10 A
Number of Contacts
7
Flammability Rating
UL 94 HB

Description

Inserts, Crimp termination, Female, Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 3 A, Contacts: 7, Conductor cross-section: 0.14 ... 2.5 mm2
