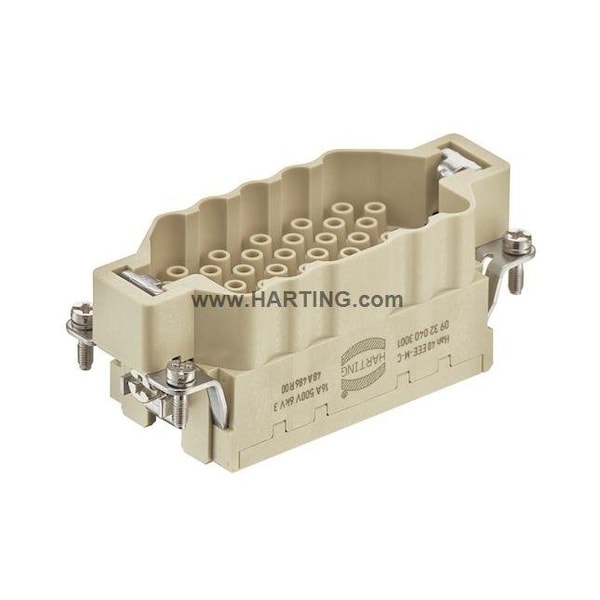

Han 40 Eee-M-C
Mfr # 09320403001
Zoro # G2047251
product price: $89.99
/ea
Free Shipping & Returns
Key Features
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
09320403001
Zoro #
G2047251
UPC #
-
Country of Origin
Germany
Dimensions
Min. Single Wire Size
26 AWG
Max. Single Wire Size
12 AWG
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
12 AWG
Details
Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Male
Series
Han EEE
Material
Polycarbonate
Terminal Type
Crimp
Approximate Amperage Rating - Grounding Braid
16 A
Max. Temp.
125°C
Max. Voltage
500 V
Sub-Category
Inserts
Standards
EN 45545-2 (2020-08); UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076
Green Environmental Attribute
Pollution Degree 3
Current Rating
16 A
Number of Contacts
40
Flammability Rating
UL 94 V-0
Description
Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 40, Conductor cross-section: 0.14 ... 4 mm2
