Han C Module, Crimp Male (Two, PK 2
Mfr # 09140033003
Zoro # G2044731
product price:
$
34.99
/pk of 2, $17.50/ea
Key Features
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
40 A
Maximum Operating Temperature
125 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 09140033003
- Zoro #
- G2044731
- UPC #
- -
- Country of Origin
- Germany
- Item
- Connector Module
- Color
- Pebble Gray
- Insulation Material
- Polycarbonate
- Maximum Voltage
- 500 V
- Current
- 40 A
- Maximum Operating Temperature
- 125 Degrees C
- UL 94 Flammability Rating
- V-0
- Material
- Polycarbonate
- Connector Type
- Male
- Sub-Category
- Modules
- Standards
- EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076
- Max. Temp.
- 125°C
- Terminal Type
- Crimp
- Green Environmental Attribute
- Pollution Degree 3
- Series
- Han-Modular
- Max. Voltage
- 500 V
- Approximate Amperage Rating - Grounding Braid
- 40 A
- Current Rating
- 40 A
- Number of Contacts
- 3
- Flammability Rating
- UL 94 V-0
- Maximum Conductors
- 3
Description

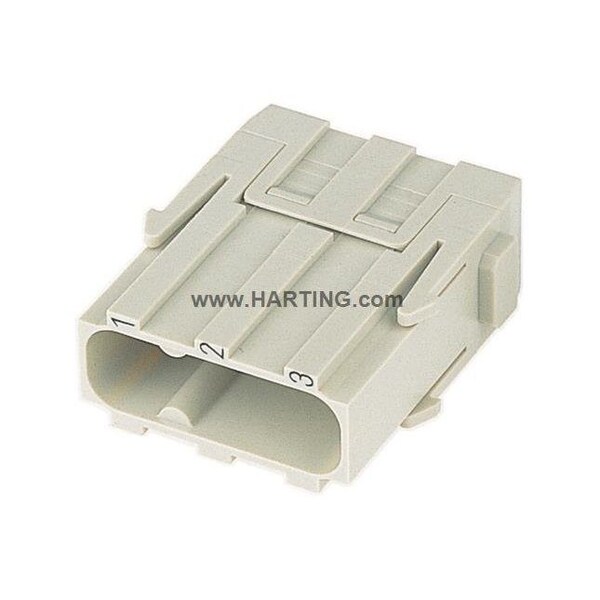

Han® C module, for increased tensile stress, Crimp termination, Male, Contacts: 3, Conductor cross-section: 1.5 ... 6 mm2, Rated current: 40 A, Polycarbonate (PC), RAL 7032 (pebble grey)
