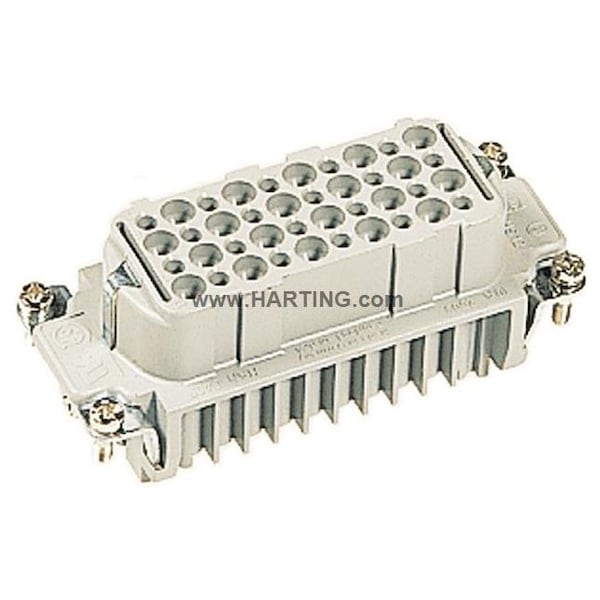

Harting Han D 40 Pos. F Insert Crimp 09210403101 - main

Han D 40 Pos. F Insert Crimp

  • Mfr # 09210403101

  • Zoro # G2050219

product price: $32.85
/ea

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09210403101
Zoro #
G2050219
UPC #
-
Country of Origin
Romania

Dimensions

Min. Single Wire Size
0.14 mm2
Max. Single Wire Size
2.5 mm2
Minimum Single Wire Size
26 AWG
For Minimum Wire Size - Solid
26 AWG
Maximum Single Wire Size
14 AWG

Details

Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Female
Material
Polycarbonate
Sub-Category
Inserts
Approximate Amperage Rating - Grounding Braid
10 A
Green Environmental Attribute
Pollution Degree 3
Series
Han D
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076
Max. Voltage
250 V
Max. Temp.
125°C
Terminal Type
Crimp
Number of Contacts
40
Current Rating
10 A
Flammability Rating
UL 94 V-0
Maximum Conductors
40

Description

Inserts, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 16 B, Contacts: 40, Conductor cross-section: 0.14 ... 2.5 mm2
