Shop HARTING

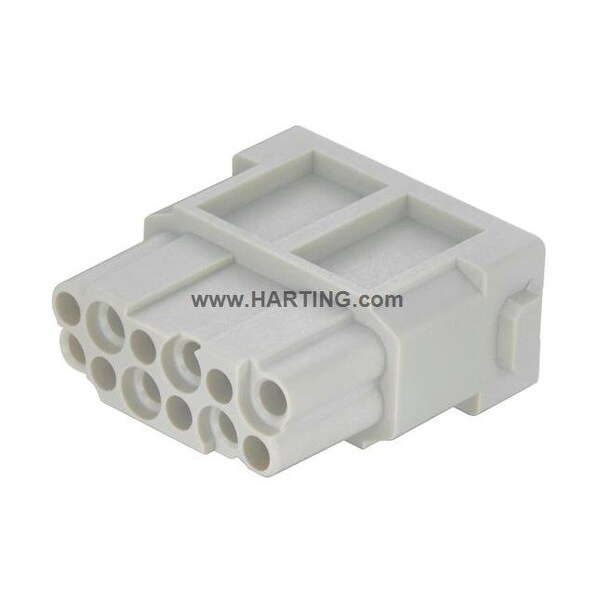

Han Dd Module, Crimp Female, PK 2

  • Mfr # 09140123102

  • Zoro # G2043788

product price:  $14.59
/pk 2, $7.30/ea

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09140123102
Zoro #
G2043788
UPC #
-
Country of Origin
Germany

Dimensions

Min. Single Wire Size
0.14 mm2
Max. Single Wire Size
2.5 mm2
Maximum Single Wire Size
14 AWG
Minimum Single Wire Size
26 AWG

Details

Item
Connector Module
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Approximate Amperage Rating - Grounding Braid
10 A
Green Environmental Attribute
Pollution Degree 3
Sub-Category
Modules
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3
Series
Han-Modular
Max. Voltage
250 V
Connector Type
Female
Terminal Type
Crimp
Material
Polycarbonate
Max. Temp.
125°C
Number of Contacts
12
Current Rating
10 A
Flammability Rating
UL 94 V-0

Description

Han DD® module, Crimp termination, Female, Contacts: 12, Conductor cross-section: 0.14 ... 2.5 mm2, Rated current: ‌10 A, Polycarbonate (PC), RAL 7032 (pebble grey)
