  6. Wire Connector, 14 AWG Max, Bare, Nylon Insulation, 600 V AC/DC, 12 A

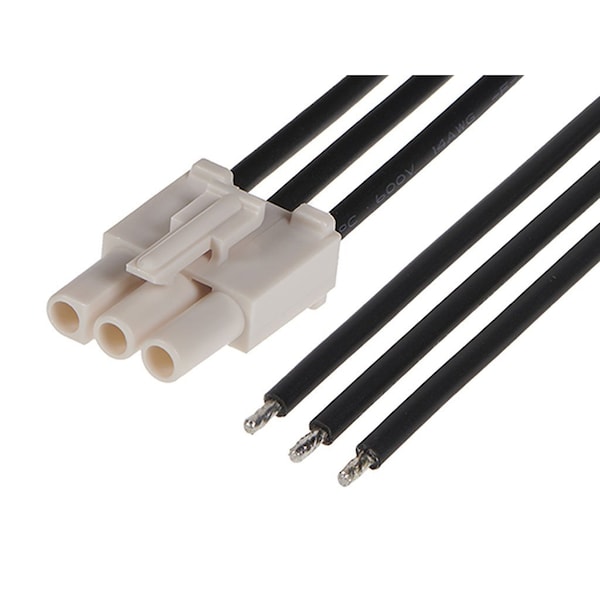

Molex Wire Connector, 14 AWG Max, Bare, Nylon Insulation, 600 V AC/DC, 12 A 2162911033 - main

Wire Connector, 14 AWG Max, Bare, Nylon Insulation, 600 V AC/DC, 12 A

  • Mfr # 2162911033

  • Zoro # G505790519

product price:  $6.49
/ea
Sold in multiples of 15 for $97.35

Key Features

Type
Crimp
Color
Natural
Maximum Wire Size
14 AWG
Minimum Wire Size
14 AWG
Insulation Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2162911033
Zoro #
G505790519
UPC #
-
Country of Origin
India

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
14 AWG
Length
600 mm
Max. Insulation Dia.
4.06 mm
Contact Plating Thickness
0.508 µm
Cable Length
600.00mm
Wire Insulation Diameter
1.65-4.06mm

Details

Item
Cable Assembly/Connector
Type
Crimp
Color
Natural
Insulation Material
Nylon
Maximum Voltage
600V AC/DC
Current
12 A
Maximum Operating Temperature
85 Degrees C
RoHS Compliant
Yes
Series
216291
Material
Brass
Application
Power, Wire-to-Board, Wire-to-Wire
Features
Single Ended
Finish
Tin Plated
Number of Contacts
3
Hole Center to Center
6.7 mm
Number of Rows
1
Material - Plating Mating
Tin
Single Ended
Yes
Connector to Connector
Standard 093"-to-Pigtail
Assembly Configuration
Single Ended Connector
Material - Plating Termination
Tin
Pitch - Mating Interface
6.70mm
Circuits (Loaded)
3
Wire/Cable Type
UL 1015
Plating min - Mating
0.508µm
Overmolded
No
Lock to Mating Part
Yes
Maximum Conductors
3
