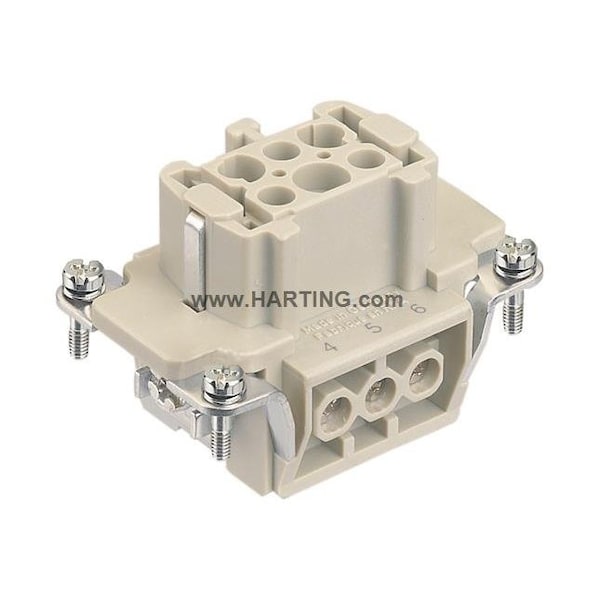

Harting Han E 06 Pos. F Insert Screw 09330062701 - main

Han E 06 Pos. F Insert Screw

  • Mfr # 09330062701

  • Zoro # G2774719

product price:  $25.39
/ea

Key Features

Type
Female
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09330062701
Zoro #
G2774719
UPC #
-
Country of Origin
Germany

Dimensions

Max. Single Wire Size
14 AWG
Min. Single Wire Size
18 AWG
Minimum Single Wire Size
18 AWG
Maximum Single Wire Size
14 AWG

Details

Item
Contact Insert
Type
Female
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Copper Alloy
Series
Han E
Max. Temp.
125°C
Finish
Silver Plated
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390
Approximate Amperage Rating - Grounding Braid
16 A
Material
Polycarbonate
Sub-Category
Inserts
Terminal Type
Screw
Green Environmental Attribute
Pollution Degree 3
Max. Voltage
500 V
Connector Type
Female
Current Rating
16 A
Contact Finish
Silver Plated
Number of Contacts
6
Flammability Rating
UL 94 V-0

Description

Inserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.75 ... 2.5 mm2, Copper alloy, Silver plated
