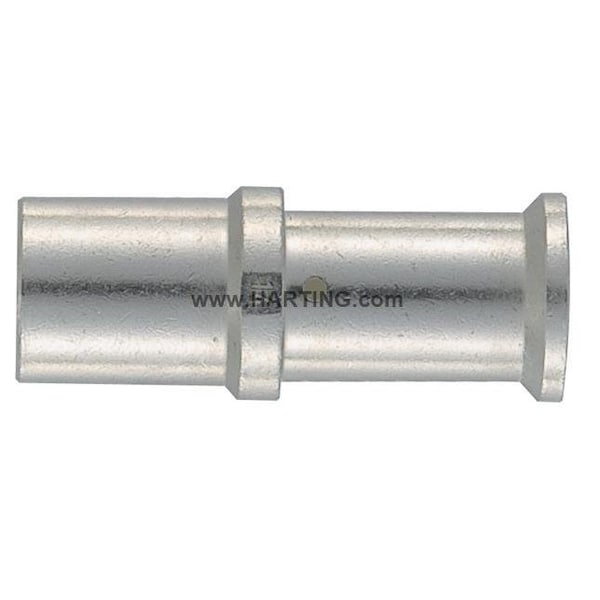

Han Tc250 Female Contact 50sq mm
Mfr # 09110006228
Zoro # G2047358
product price: $74.79
/eaKey Features
Maximum Operating Temperature
125 Degrees C
Description/Special Features
The Vibration and Shock Resistance can only be Met If The Cables are Fixed at an Appropriate Distance. Instructions for the Spacing of Strain Relief can be Found In The Document in Ecatalogue Under the Section Instructions.
Series
TC 250
Max. Temp.
125°C
Min. Single Wire Size
50 sq mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 09110006228
- Zoro #
- G2047358
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Min. Single Wire Size
- 50 sq mm
- Minimum Single Wire Size
- 1 AWG
- For Minimum Wire Size - Solid
- 1 AWG
Details
- Item
- Connector Contact
- Maximum Operating Temperature
- 125 Degrees C
- Description/Special Features
- The Vibration and Shock Resistance can only be Met If The Cables are Fixed at an Appropriate Distance. Instructions for the Spacing of Strain Relief can be Found In The Document in Ecatalogue Under the Section Instructions.
- Series
- TC 250
- Max. Temp.
- 125°C
- Connector Type
- Female
- Sub-Category
- Contacts
- Type
- Female
- Connection Material
- Copper Alloy
- Standards
- EN 60664-1; IEC 61984
- Wire Range
- 50 mm2
- Finish
- Silver Plated
- Contact Finish
- Silver Plated
- Contact Type
- Crimp
Description
Crimp contact, Operating current: ≤250 A, Female, Copper alloy, Silver plated, Conductor cross-section: 50 mm2
