  11. M12 Circular Connector, 4 Poles, 4 A

This item is Discontinued.

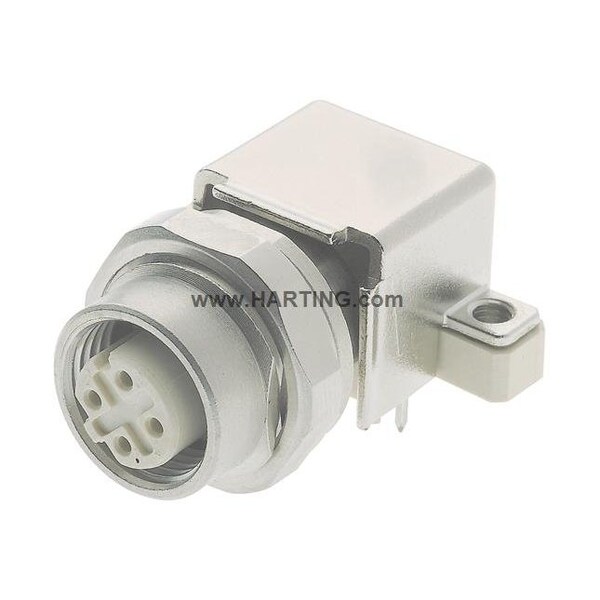

Harting M12 Circular Connector, 4 Poles, 4 A 21033814412

M12 Circular Connector, 4 Poles, 4 A (Discontinued)

  • Mfr # 21033814412
  • Zoro # G705285945
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
21033814412
Zoro #
G705285945
UPC #
-
Country of Origin
Romania

Dimensions

Thread Size
M12

Details

Style - Connector
Angled
Cable Clamping Method
Reflow Soldering Termination (THR)
Standards
California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, REACH SVHC, RoHS Complaint, UL Listed
Material
Zinc Die-Cast
Item
M12 PCB Adapter
Type
Female
Connector Orientation
Angled
Application
100 Mbit Ethernet
Minimum Operating Temperature
-40 Degrees C
Housing Material
Zinc Die-Cast
Number of Poles
4
IP Rating
IP20
Insulation Resistance
Greater than 1,000 Megaohm
Shielded
Yes
Nominal Current
4 A
Mounting Style
Female Thread PCB Adapter
Connector Body Type
Socket
Minimum Mating Cycles
100
Maximum Operating Temperature
85 Degrees C
Connection Type
PCB Connection, Solder
Number of Contacts
4 Socket
Coding
D
Voltage Rating
50V
Locking Style
Screw Connection
Maximum Contact Resistance
10 megaohm

Description

HAEL 21033814412 M12 D-CODE 4PIN F
