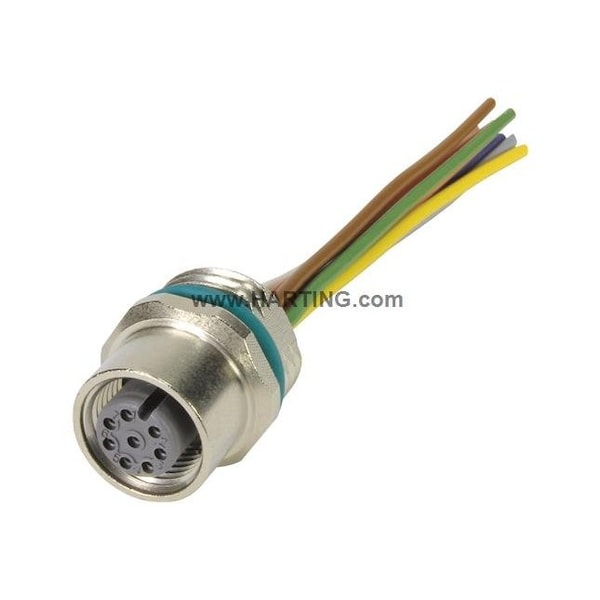

Harting M12 Circular Connector, 8 Poles, 2 A 21033176805 - main

M12 Circular Connector, 8 Poles, 2 A

  • Mfr # 21033176805

  • Zoro # G205286015

product price:  $24.95
/ea

Key Features

Type
Female
Material
Zinc Die-Cast
Standards
California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, REACH SVHC, RoHS Complaint, UL Listed
Conductor Cross Section Size
0.25 sq mm
Application
DC Power, Gigabit Internet, Sensors, Signal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
21033176805
Zoro #
G205286015
UPC #
-
Country of Origin
United States

Dimensions

Conductor Cross Section Size
0.25 sq mm
Thread Size
M12

Details

Item
M12 Panel Feed-Through Cable Assembly
Type
Female
Material
Zinc Die-Cast
Standards
California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, REACH SVHC, RoHS Complaint, UL Listed
Application
DC Power, Gigabit Internet, Sensors, Signal
Mounting Style
Female Thread
Coding
A
Connection Type
50 cm Wire Leads
Connector Body Type
Socket
Shielded
No
Minimum Mating Cycles
100
Voltage Rating
30V
Number of Contacts
8 Socket
IP Rating
IP67
Number of Poles
8
Maximum Contact Resistance
10 megaohm
Locking Style
Screw Connection
Insulation Resistance
Greater than 1,000 Megaohm
Maximum Operating Temperature
80 Degrees C
Nominal Current
2 A
Housing Material
Zinc Die-Cast
Connector Orientation
Straight
Minimum Operating Temperature
-30 Degrees C

Description

HAEL 21033176805 M12 A-CODE 8PIN F

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
