  11. M23 Circular Connector Inserts, Male

This item is Discontinued.

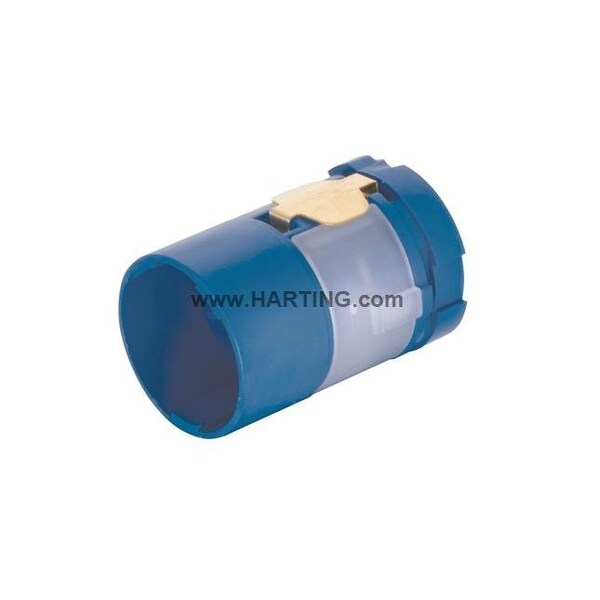

Harting M23 Circular Connector Inserts, Male 09156063001

M23 Circular Connector Inserts, Male (Discontinued)

  • Mfr # 09156063001
  • Zoro # G005285942
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09156063001
Zoro #
G005285942
UPC #
-
Country of Origin
Germany

Dimensions

Min. Single Wire Size
0.14 mm2
Max. Single Wire Size
4 mm2
Wire Size
0.75 mm to 4 mm
Cable Diameter
2 mm

Details

Color
Blue
Series
Circular Connectors M23
Max. Voltage
600V
Application
Power
Material
Polyamide
Item
M23 Circular Connector Inserts
Number of Poles
5
Number of Contacts
5 + PE
Connection Type
Crimp
Minimum Operating Temperature
-40 Degrees C
Connector Gender
Male
Includes Ground
PE
Voltage Rating
600V
Insert Color
Blue
Minimum Insulation Resistance
1.00 x 10^13 ohm
Maximum Operating Temperature
125 Degrees C
Includes Poles
No
Minimum Mating Cycles
500
For Connector Type
M23
Current Rating
28 A
Insert Material
Polyamide
Standards
China RoHS, CSA-C22.2 No. 18.3 QCRV7.E479780, ELV Compliant, RoHS Complaint, UL 514B QCRV.E479780
Connector Type
Male
Terminal Type
Crimp
Max. Temp.
125°C
Sub-Category
Inserts
Green Environmental Attribute
Pollution Degree 3
Flammability Rating
UL 94 V-0

Description

Harting Insert

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
