Harting

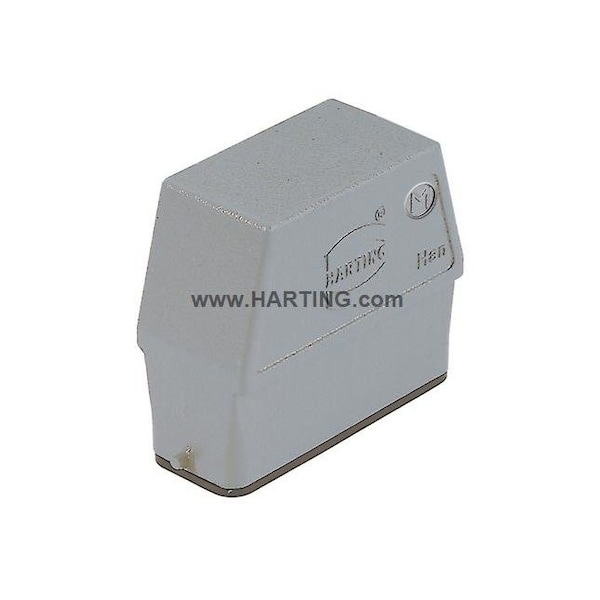

M25 Rectangular Connector Hood, 70.3 mm H (Discontinued)

This Product is Discontinued
Shop for all Wire Connectors

Key Features

  • Color Gray
  • Series Han(R) A
  • Height 70.3 mm
  • Width 35 mm
  • Application Industrial
See all product information

Product Information

Dimensions

Height 70.3 mm
Width 35 mm
Length 88.3 mm
Cable Entry Thread Size M25
Size Designation 16 A
Housing/Hood Size Designation 16 A

Details

Color Gray
Series Han(R) A
Application Industrial
Item M25 Rectangular Connector Hood
Material Aluminium
Primary Material Aluminum
Maximum Operating Temperature 125 Degrees C
Minimum Operating Temperature -40 Degrees C
Seal Material NBR
Housing/Hood Material Aluminum Die-Cast
Product Type Hood
Entry Type Single-Entry
Entry Location Side
Number of Entries 1
Locking Type Single Lever
Housing Color Gray
Finish Powder Coated
Type Hood
IP Rating IP65
Max. Temp. 125°C
Standards California Proposition 65, CE Certified, China RoHS, CSA-C22.2 No. 18.3 QCRV7.E479780, DNV GL, ELV Compliant, RoHS Complaint, UL 514B QCRV.E479780
Sub-Category Hoods/Housings

Description

HAEL 19200160546 HOOD M25 SIDE
