  11. M32 Rectangular Connector Hood, 72 mm H

This item is Discontinued.

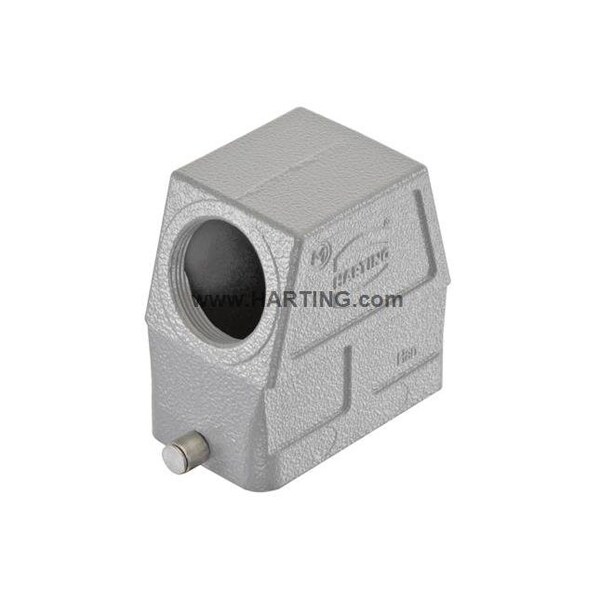

Harting M32 Rectangular Connector Hood, 72 mm H 19300100547

M32 Rectangular Connector Hood, 72 mm H (Discontinued)

  • Mfr # 19300100547
  • Zoro # G105286139
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
19300100547
Zoro #
G105286139
UPC #
-
Country of Origin
United States

Dimensions

Height
72 mm
Width
45 mm
Length
91.1 mm
Housing/Hood Size Designation
10 B
Cable Entry Thread Size
M32
Dimensions
HxW: 2.83 x 2.85 in. (72 x 72.6mm)
Mounting Code-Series Size
B10

Details

Color
Gray
Series
Han(R) B
Application
Industrial Connectors
Material
Aluminium
Item
M32 Rectangular Connector Hood
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
125 Degrees C
Locking Type
Single Lever
Housing Color
Gray
Number of Entries
1
Product Type
Hood
Seal Material
NBR
Housing/Hood Material
Aluminum Die-Cast
Entry Location
Side
Standards
California Proposition 65, CE Certified, China RoHS, CSA-C22.2 No. 18.3 QCRV7.E479780, DNV GL, ELV Compliant, RoHS Complaint, UL 514B QCRV.E479780
IP Rating
IP65, IP66, IP67
Sub-Category
Hoods/Housings
Finish
Powder Coated
Max. Temp.
125°C
Enclosure Rating
IP65
Mounts To
Single Lever Base
Material, Housing
Die Cast Aluminum
Material, Attachments
Polycarbonate, Stainless Steel Lock
Entry Position
Side Entry

Description

HAEL

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
