  9. PCB Connector, 2A, 96 Poles

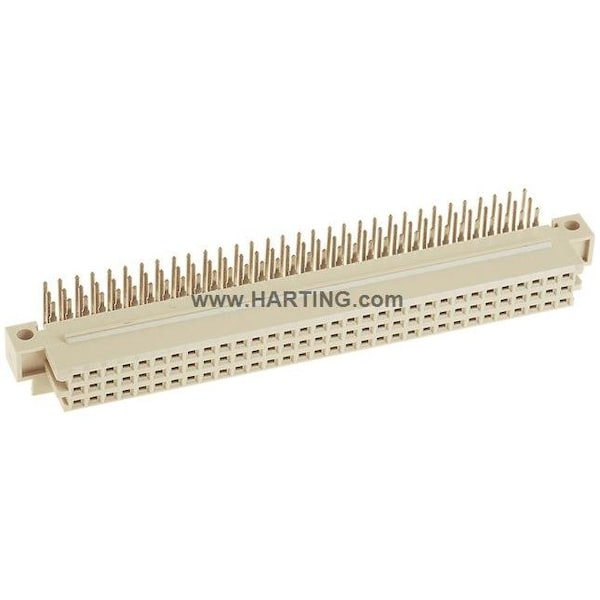

Harting PCB Connector, 2A, 96 Poles 09732967801 - main

PCB Connector, 2A, 96 Poles

  • Mfr # 09732967801

  • Zoro # G2044068

product price: $180.99
/pk 20, $9.05/ea
Free Shipping & Returns

Key Features

Amps
2A
Number of Poles
96
Standards
DIN 41612; IEC 60603-2; UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Material of Construction
Glass Fiber Filled Thermoplastic Resin
Description/Special Features
Lead-Free
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09732967801
Zoro #
G2044068
UPC #
-
Country of Origin
Germany

Dimensions

Termination length
3 mm

Details

Item
PCB Connector
Amps
2A
Number of Poles
96
Standards
DIN 41612; IEC 60603-2; UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Material of Construction
Glass Fiber Filled Thermoplastic Resin
Description/Special Features
Lead-Free
Type
Type R
Features
lead-free
Series
DIN 41612
Termination method
Wave soldering termination
Creepage distance
1.2 mm
Identification
Type R
Contact resistance
2A20 Deg
Description of the contact
Angled
PCB fixing
With fixing flange
Material flammability class acc. to UL2 94
V-0
Performance level
3 || acc. to IEC 60603-2
Contact spacing (termination side)
2.54 mm
Material (contacts)
Copper alloy
Clearance distance
1.2 mm
Contact rows
3
Element
Female connector
Rated current
Rated current measured at 20DegC, see derating curve for details
Contact spacing (mating side)
2.54 mm
Connection type
Motherboard to daughtercard || Extender card
Colour (insert)
RAL 7032 (pebble grey)
Number of contacts
96
Mating cycles
50
Railway classification
F4/I3 acc. to NFF 16-101/102
Limiting temperature
-552 ...2 +1252 2DegC
UL / CSA
UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Contact configuration
Rows a, b and c, positions 1, 2, ... , 31, 32
Isolation group
IIIa (175ACTI < 400)
Surface (contacts)
Noble metal Mating side || Sn over Ni Termination side
Material (insert)
Thermoplastic resin, glass-fibre filled
Hot plugging
No
Insulation resistance
>10
Insertion and withdrawal force
2A90 N
Test voltage U r.m.s.
1 kV

Description

Connectors, Female connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 96, Angled, Copper alloy, Noble metal
