  9. Rectangular Connector Insert, 10 A

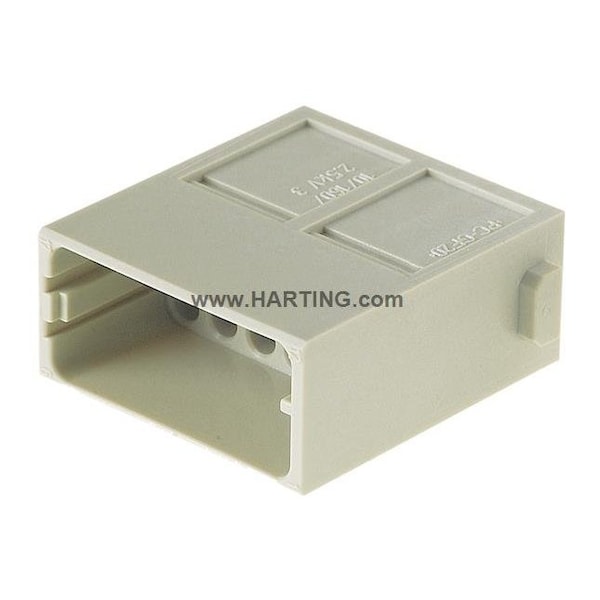

Harting Rectangular Connector Insert, 10 A 09140173001 - main

Rectangular Connector Insert, 10 A

  • Mfr # 09140173001

  • Zoro # G205293044

product price: $7.39
/ea
Sold in multiples of 2 for $14.78

Key Features

Type
Male
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
160 V
Current
10 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09140173001
Zoro #
G205293044
UPC #
-
Country of Origin
Germany

Dimensions

Wire Size
0.14 to 2.5 sq mm
Min. Single Wire Size
0.14 mm2
Max. Single Wire Size
2.5 mm2
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
14 AWG

Details

Item
Industrial Rectangular Connector Insert
Type
Male
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
160 V
Current
10 A
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
125 Degrees C
Number of Ports
17
UL 94 Flammability Rating
V-0
RoHS Compliant
Yes
Material
Polycarbonate
Application
Industrial Connectors
Minimum Mating Cycles
500
Minimum Insulation Resistance
1.00 x 10^10 ohm
Insert Color
Gray
Current Rating
10 A
Connection Type
Crimp
Insert Material
Polycarbonate
Voltage Rating
160V, 250V (UL)
Connector Gender
Male
Number of Poles
17
Includes Poles
No
Max. Voltage
160V
Green Environmental Attribute
Pollution Degree 3
Connector Type
Male
Standards
China RoHS, DNV GL, ELV Compliant, EN 60664-1, RoHS Complaint, UL/CSA
Sub-Category
Modules
Series
Han-Modular(R)
Terminal Type
Crimp
Max. Temp.
125°C
Number of Contacts
17
Flammability Rating
UL 94 V-0
Termination Style
Crimp

Description

HAEL 09140173001 HAN MODULAR 17 DDD
