  6. Rectangular Connector Insert, 16 A

This item is Discontinued.

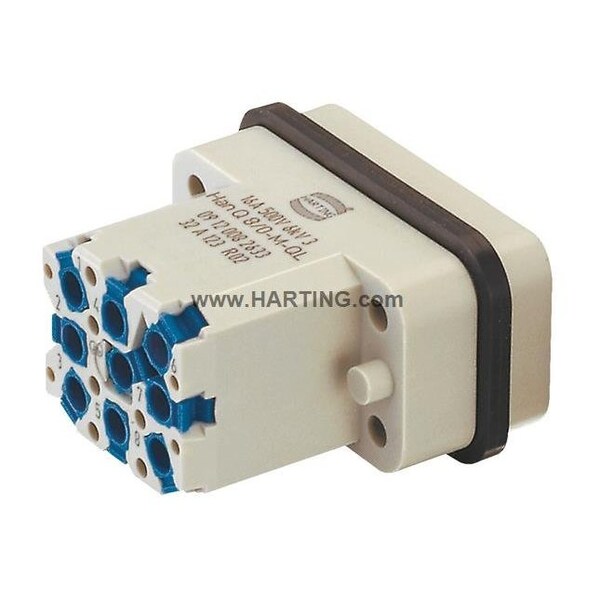

Harting Rectangular Connector Insert, 16 A 09120082633

Rectangular Connector Insert, 16 A (Discontinued)

  • Mfr # 09120082633
  • Zoro # G505293157
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09120082633
Zoro #
G505293157
UPC #
-
Country of Origin
Germany

Dimensions

Min. Single Wire Size
0.5 mm2
Max. Single Wire Size
2.5 mm2
Wire Size
0.5 to 2.5 sq mm

Details

Color
Pebble Gray
Series
Han(R) Q
Max. Voltage
500V
Application
Industrial Connectors
Material
Polycarbonate
Item
Industrial Rectangular Connector Insert
Includes Poles
Yes
Voltage Rating
500V, 600V (UL/CSA)
Minimum Mating Cycles
500
Insert Material
Polycarbonate
Insert Color
Gray
Connector Gender
Male
Maximum Operating Temperature
125 Degrees C
Minimum Operating Temperature
-40 Degrees C
Pole Material
Copper Alloy
Number of Poles
8
Minimum Insulation Resistance
1.00 x 10^10 ohm
Connection Type
Spring-Clamp
Maximum Contact Resistance
3 megaohm
Pole Finish
Silver Plated
Current Rating
16 A
Sub-Category
Inserts
Green Environmental Attribute
Pollution Degree 3
Max. Temp.
125°C
Standards
California Proposition 65, China RoHS, DNV GL, ELV Compliant, EN 60664-1, REACH SVHC, RoHS Complaint, UL/CSA
Connection Material
Copper Alloy
Connector Type
Male
Number of Contacts
8
Contact Finish
Silver Plated
Flammability Rating
UL 94 V-0

Description

HAEL 09120082633 HAN Q8/0-M-QL 20-1
