This item is Discontinued.

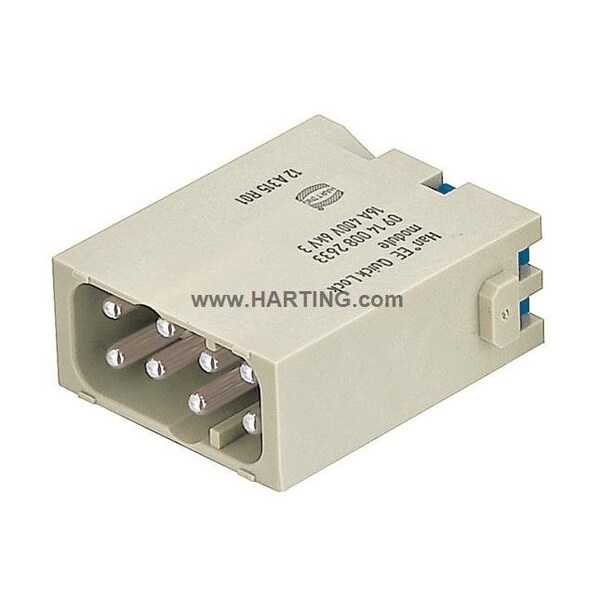

Harting Rectangular Connector Insert, 16 A 09140082633

Rectangular Connector Insert, 16 A (Discontinued)

  • Mfr # 09140082633
  • Zoro # G005293060
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09140082633
Zoro #
G005293060
UPC #
-
Country of Origin
Romania

Dimensions

Min. Single Wire Size
0.5 mm2
Max. Single Wire Size
2.5 mm2
Wire Size
0.5 to 2.5 sq mm

Details

Color
Pebble Gray
Series
Han-Modular(R)
Max. Voltage
400V
Application
Industrial Connectors
Item
Industrial Rectangular Connector Insert
Material
Polycarbonate
Insert Material
Polycarbonate
Number of Poles
8
Pole Material
Copper Alloy
Maximum Contact Resistance
1 megaohm
Connection Type
Spring-Clamp
Minimum Operating Temperature
-40 Degrees C
Minimum Insulation Resistance
1.00 x 10^10 ohm
Voltage Rating
400V, 600V (UL)
Maximum Operating Temperature
125 Degrees C
Current Rating
16 A
Insert Color
Gray
Minimum Mating Cycles
500
Pole Finish
Silver Plated
Includes Poles
Yes
Connector Gender
Male
Connection Material
Copper Alloy
Connector Type
Male
Green Environmental Attribute
Pollution Degree 3
Sub-Category
Modules
Standards
California Proposition 65, China RoHS, DNV GL, ELV Compliant, EN 60664-1, REACH SVHC, RoHS Complaint, UL/CSA
Max. Temp.
125°C
Contact Finish
Silver Plated
Number of Contacts
8
Flammability Rating
UL 94 V-0

Description

HAEL 09140082633 HAN MODULAR QUICKL
