  5. Rectangular Connector Insert, 16 A

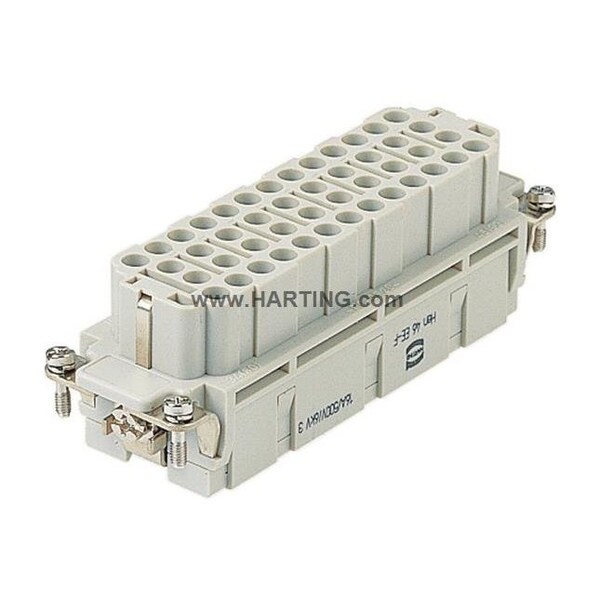

Harting Rectangular Connector Insert, 16 A 09320463101 - main

Rectangular Connector Insert, 16 A

  • Mfr # 09320463101

  • Zoro # G105293342

product price:  $45.89
/ea

Key Features

Type
Female
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09320463101
Zoro #
G105293342
UPC #
-
Country of Origin
Romania

Dimensions

Wire Size
0.14 to 4 sq mm, 26 to 12 AWG
Max. Single Wire Size
12 AWG
Min. Single Wire Size
26 AWG
Maximum Single Wire Size
12 AWG
Minimum Single Wire Size
26 AWG

Details

Item
Industrial Rectangular Connector Insert
Type
Female
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Application
Industrial Connectors
Material
Polycarbonate
Connection Type
Crimp
Minimum Insulation Resistance
1.00 x 10^10 ohm
Current Rating
16 A
Minimum Mating Cycles
500
Insert Material
Polycarbonate
Number of Poles
46
Voltage Rating
500V, 600V (UL/CSA)
Connector Gender
Female
Insert Color
Gray
Includes Poles
No
Green Environmental Attribute
Pollution Degree 3
Sub-Category
Inserts
Standards
California Proposition 65, China RoHS, DNV GL, ELV Compliant, EN 60664-1, RoHS Complaint, UL/CSA
Max. Voltage
500V
Terminal Type
Crimp
Connector Type
Female
Series
Han(R) EE
Max. Temp.
125°C
Number of Contacts
46
Flammability Rating
UL 94 V-0
Termination Style
Crimp

Description

HAEL 09320463101 HARTING
