This item is Discontinued.

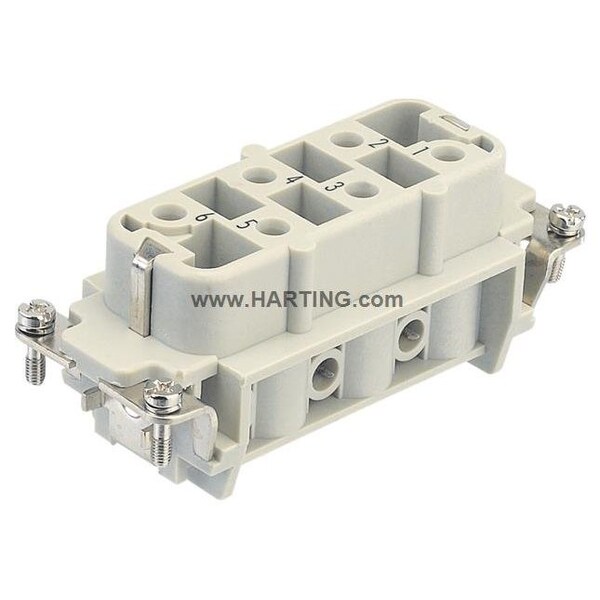

Harting Rectangular Connector Insert, 35 A 09310062701

Rectangular Connector Insert, 35 A (Discontinued)

  • Mfr # 09310062701
  • Zoro # G505301906
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09310062701
Zoro #
G505301906
UPC #
-
Country of Origin
Romania

Dimensions

Wire Size
1.5 to 6 sq mm
Max. Single Wire Size
6 mm2
Min. Single Wire Size
1.5 mm2
Maximum Single Wire Size
10 AWG
Minimum Single Wire Size
16 AWG

Details

Item
Industrial Rectangular Connector Insert
Type
Female
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
600 V
Current
35 A
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
125 Degrees C
Number of Ports
6
UL 94 Flammability Rating
V-0
RoHS Compliant
Yes
Material
Polycarbonate
Application
Industrial Connectors
Insert Color
Gray
Includes Poles
Yes
Pole Material
Copper Alloy
Number of Poles
6
Voltage Rating
400V (Signal), 600V, 690V (Conductor)
Minimum Mating Cycles
500
Insert Material
Polycarbonate
Maximum Contact Resistance
1 megaohm
Pole Finish
Silver Plated
Minimum Insulation Resistance
1.00 x 10^10 ohm
Connector Gender
Female
Current Rating
35 A
Connection Type
Screw
Terminal Type
Screw
Standards
California Proposition 65, China RoHS, DNV GL, ELV Compliant, EN 60664-1, REACH SVHC, RoHS Complaint, UL/CSA
Connector Type
Female
Max. Voltage
600V
Green Environmental Attribute
Pollution Degree 3
Max. Temp.
125°C
Series
Han(R) HsB
Connection Material
Copper Alloy
Sub-Category
Inserts
Contact Finish
Silver Plated
Number of Contacts
6
Flammability Rating
UL 94 V-0
Termination Style
Screw

Description

HAEL 9310062701 CONNECTOR 6PIN
