This item is Discontinued.

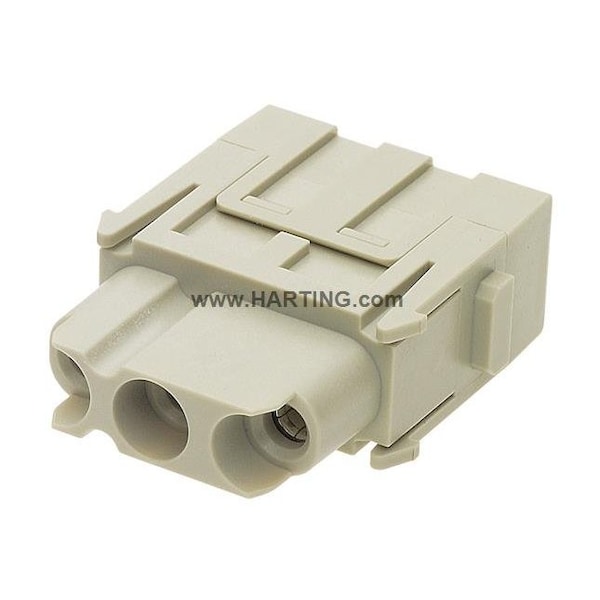

Harting Rectangular Connector Insert, 40 A 09140032701

Rectangular Connector Insert, 40 A (Discontinued)

  • Mfr # 09140032701
  • Zoro # G105293045
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09140032701
Zoro #
G105293045
UPC #
-
Country of Origin
Germany

Dimensions

Min. Single Wire Size
2.5 mm2
Max. Single Wire Size
8 mm2
Wire Size
2.5 to 8 sq mm

Details

Color
Pebble Gray
Series
Han-Modular(R)
Max. Voltage
690V
Application
Industrial Connectors
Item
Industrial Rectangular Connector Insert
Material
Polycarbonate
Pole Material
Copper Alloy
Insert Color
Gray
Connector Gender
Female
Pole Finish
Silver Plated
Connection Type
Screw
Minimum Mating Cycles
500
Number of Poles
3
Includes Poles
Yes
Current Rating
40 A
Maximum Contact Resistance
0.3 megaohm
Maximum Operating Temperature
125 Degrees C
Insert Material
Polycarbonate
Minimum Insulation Resistance
1.00 x 10^10 ohm
Voltage Rating
600V (UL), 690V
Minimum Operating Temperature
-40 Degrees C
Standards
California Proposition 65, China RoHS, DNV GL, ELV Compliant, EN 60664-1, REACH SVHC, RoHS Complaint, UL/CSA
Connection Material
Copper Alloy
Max. Temp.
125°C
Green Environmental Attribute
Pollution Degree 3
Terminal Type
Axial Screw
Sub-Category
Modules
Connector Type
Female
Contact Finish
Silver Plated
Number of Contacts
3
Flammability Rating
UL 94 V-0

Description

HAEL 09140032701 INSERT HAN CONNECT
