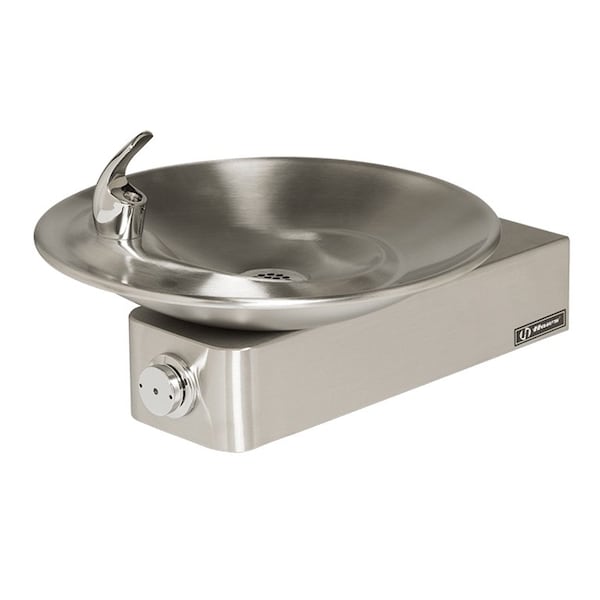

1001 ADA Vandal-Resistant Drinking Fountain

Model 1001B wall mounted barrier-free vandal-resistant drinking fountain shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket, 3/16" 0.47 cm thick steel in-wall mounting plate, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, and 1-1/4" 3.2 cm O.D. waste pipe. P-trap and stop require rear access In extreme environments related to heat and cold, products must be protected from damage/exposure due to these extreme conditions.

• Only stainless steel valve body that is machined out of solid bar stock
• 100% lead-free waterways
• 18-gauge Type 304 Stainless Steel construction and required specialized mounting frame offer a well constructed sturdy fountain
• Trap and shut off must be in the wall
• Polished chrome-plated brass bubbler head with integral laminar anti-squirt flow eliminate water splash
• Easy maintenance with front access to valve adjustment and cartridge replacement
