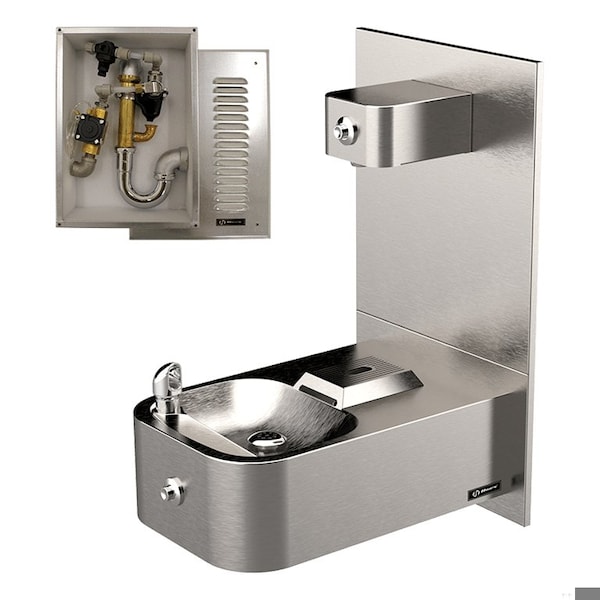

ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain and Bottle Filler

The Haws 1109FRP barrier-free vandal-resistant drinking fountain and bottle filler includes fully engineered pneumatic operated freeze-resistant valve assemblies for continual use during winter months. Wall mounted design allows the unit to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals. Model 1109FRP wall mounted vandal-resistant barrier-free drinking fountain and bottle filler shall include an 18 gauge Type 304 Stainless Steel satin finish basin, In-wall 3/16 thick steel mounting plate adds extra wall support when mounting the fountain and bottle filler, drip tray for bottle placement during filling, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant push-buttons, pneumatic valves installed on the inside wall where room temperatures do not drop below 50° F 10° C, self-draining water lines which protect the unit from freezing, stainless steel back panels, polished chrome-plated brass vandal resistant waste strainer, vandal-resistant stainless bottom plates, and 1-1/4 O.D. 3.2 cm waste pipe.

• Fountain is made of 18 gauge Type 304 stainless steel, and bottle filler made of 14-gauge Type 304 stainless steel, both with a satin finish that resists stains and corrosion, and have soft, rounded corners. Unit features stainless steel satin finish back panels, vandal-resistant bottom plates, and 1-1/4" integral trap.
• Fully engineered system with the pneumatic-operated, freeze-resistant valves mounted in cabinets that are installed on the inside wall where room temperature does not drop below 50° F (10° C). When valves goes to off position, water left in supply line between valve and bubbler or bottle filler drains back into waste inside cabinet, protecting the unit from freezing, and allowing fountain to function year-round.
• Polished chrome-plated brass bubbler head with integral 11/16" dia. basin shank and stainless anti-rotation roll pin for vandal resistance strength. Shielded, angled stream opening provides a steady, sanitary source of drinking water at 0.45-gpm.
• The bubbler head, push button, drain strainer and bottom plate are locked in place, discouraging unwanted vandal tampering.
