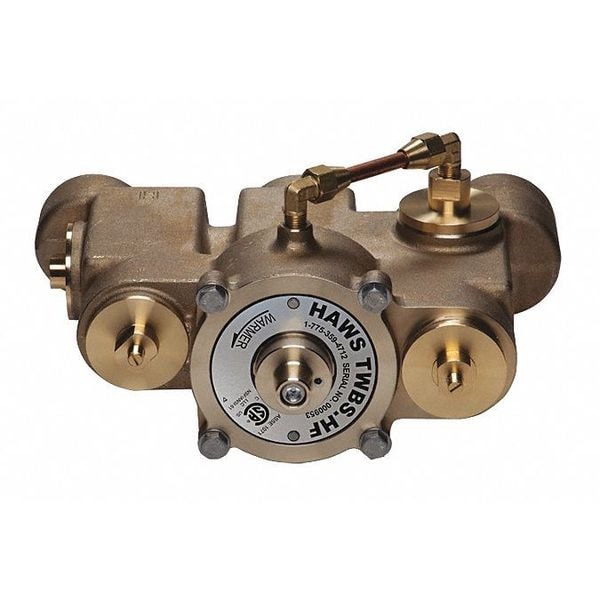

Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers

  • Mfr # TWBS.HF
  • Zoro # G4379033
product price:
$
5,777.99
/ea
Free Shipping & Returns

Key Features

For Use With
Eyewashes, Showers
Material
Brass
Color
Yellow
Height
9 5/8 in
Width
8 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TWBS.HF
Zoro #
G4379033
UPC #
611970381169
Country of Origin
United States

Dimensions

Height
9 5/8 in
Width
8 1/4 in
Length
13 in
Inlet Size
2" NPT
Depth
12 7/8 in
Inlet Pipe Size
2"
Outlet Pipe Size
2 in

Details

Item
Emergency Mixing Valve
For Use With
Eyewashes, Showers
Material
Brass
Color
Yellow
Compatible with Brand
Haws
Standards
ANSI Z358.1, ASSE 1071, California Health and Safety Code 116875 (AB 1953-2006), CSA B125.3, NSF/ANSI 372, NSF/ANSI 61-section 8
Features
Anti-Scald Protection, Flow Range of 1 to 78 gpm (295 L), Shuttle Design
Flow Rate
78 gpm
Type
Emergency Safety
Accessory Type
Thermostatic Mixing Valve
Maximum Water Output Temperature
90 Degrees F
Minimum Water Output Temperature
60 Degrees F
Inlet Pipe Thread Type
NPT
Maximum Inlet Pressure
125 psi
Maximum Flow Rate
78 gpm
Inlet Pipe Gender
Female
Outlet Pipe Gender
Female
Outlet Pipe Thread Type
NPT
Maximum Inlet Temperature
180 Degrees F
Valve Features
Cold Water Bypass
Activation Type
Flow of Hot and Cold Water
Sub-Brand
AXION

Description

The HAWS - TWBS.HF is an emergency mixing valve that is intended for use as a thermostatic mixing valve for emergency eyewash and shower systems. It regulates the water temperature by mixing hot and cold water to deliver consistent output within a specified temperature range. The valve operates in response to hot and cold water flow and is compatible with Haws brand equipment. Thermostatic control maintains mixed water temperature between 60–90°F during operation.

Key Features:

  • Material: Brass construction.
  • Rated maximum flow rate: 78 gallons per minute (gpm).
  • Flow range: 1–78 gpm; uses a shuttle design for mixing.
  • Maximum inlet pressure: 125 psi.
  • Maximum inlet temperature: 180 degrees Fahrenheit.
  • Inlet and outlet pipe connection: 2 inch Female NPT threads.
  • Dimensions: 13 in length x 8 1/4 in width x 9 5/8 in height x 12 7/8 in depth.
  • Color: Yellow for visual identification.
  • Valve feature includes cold water bypass functionality.
  • Is listed/certified to the following standards: ANSI Z358.1, ASSE 1071, California Health and Safety Code 116875 (AB 1953-2006), CSA B125.3, NSF/ANSI 372, and NSF/ANSI 61 (Section 8).
