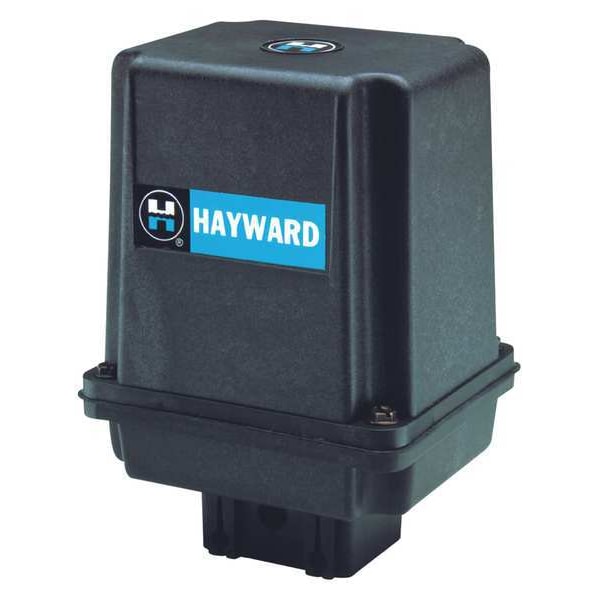

Hayward Flow Control Actuator Only, Electric, 140 in.-lb., On/Off, 115VAC, Terminal Block EAU29 - main

Actuator Only, Electric, 140 in.-lb., On/Off, 115VAC, Terminal Block

  • Mfr # EAU29

  • Zoro # G4451894

product price: $679.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Signal Type
On-Off
Torque
120 in-lb
Cycle Time
2.5 sec
Ambient Temp. Range
40 Degrees to 140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EAU29
Zoro #
G4451894
UPC #
610377154314
Country of Origin
United States

Dimensions

Width
5 in
Depth
5 in
Height
7 in
Overall Height
6 1/2 in
Stroke Length
Not Rated
Overall Depth
4 1/8 in
Overall Width
4 7/8 in

Details

Item
Electric Ball Valve Actuator
Voltage
115V AC
Signal Type
On-Off
Torque
120 in-lb
Cycle Time
2.5 sec
Ambient Temp. Range
40 Degrees to 140 Degrees F
Mounting
Non ISO
Body Material
Thermoplastic
For Use With
Hayward Ball Valves
Stroke Deg.
90
Auxiliary Switch Type
1 SPDT
Enclosure Rating
NEMA 4/4x
Electrical Connections
Cable
Type of Actuator
Non-Spring Return
Standards
CSA, UL Listed
Product Type
Electric Ball Valve Actuator
Includes Electrical Leads
Electrical Leads Not Included
Compatible Brand
Hayward
Compatible Series
LA90, TB, TBH, TN
Control Signal
On/Off
Auxiliary Contact Form
SPDT
Frequency
60 Hz
Electrical Connection Type
Terminal Block
Number of Auxiliary Switches
1
Operating Temperature - Maximum
140 Degrees F
Compatible Valve Body Pattern
Two-Way
Stroke Degree
90 Degrees
Return Action
Non-Spring Return
Housing Material
Plastic
Mounting Style
Direct Mount
NEMA Rating
4, 4X
Operating Temperature - Minimum
40 Degrees F
Features
Open/Close

Description

Electric Ball Valve Actuator, Application Not Applicable, Auxiliary Contact Form SPDT, Compatible Brand Hayward, Compatible Close-Off Pressure Not Applicable, Compatible Series LA90, TB, TBH, TN, Compatible Valve Action Not Applicable, Compatible Valve Body Pattern Two-Way, Control Signal On/Off, Cycle Time 2.5 sec, Electrical Connection Type Terminal Block, Electrical Lead Length Not Applicable, Frequency 60 Hz, Housing Material Plastic, Includes Electrical Leads Electrical Leads Not Included
