Shop HAYWARD FLOW CONTROL

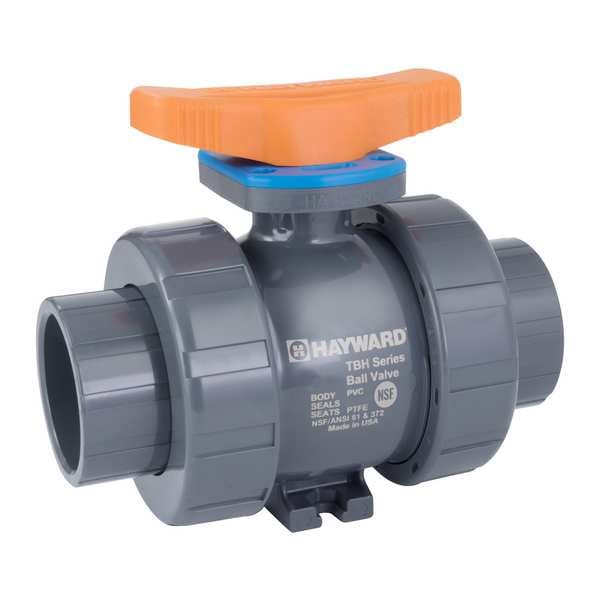

Ball Valve, True Union, 1/2", PVC/FPM, Full Port, S/T

  • Mfr # TBH1050ASTV0000

  • Zoro # G6321301

product price:
$
42.89
/ea

Key Features

Ball Material
PVC
Body Style
True Union
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TBH1050ASTV0000
Zoro #
G6321301
UPC #
610377350075
Country of Origin
United States

Dimensions

Pipe Size
1/2 in
Overall Length
6.65 in
Connection Size - Side 1
1/2 in
Nominal Valve Size
1/2 in
Connection Size - Side 2
1/2 in
Handle Length
3.5 in
Handle Height
2.82 in
Ball Opening Size
0.53 in
Wire Rope Length
6.65 in
Length
6.65 in

Details

Ball Material
PVC
Body Style
True Union
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Corrosive Chemicals, Water
Connection Type
Socket x Thread
Item
Ball Valve
Hose I.D.
1/2 in
Stem Material
PVC
Seat Material
PTFE
Compliance
NSF/ANSI 61
Handle Material
Glass Filled Polypropylene
Body Material
PVC
Handle Type
Tee
Max. Pressure
250 PSI CWP
Temp. Range
0 Degrees to 140 Degrees F
Features
Double O-Ring Stem Seals, Integral Mounting, Lockout/Tagout Directly to Body, Reversible Seats, System2TM Sealing Technology
Standards
ASTM D1784 Cell Class 12454, ASTM D4101 Cell Class 85580, NSF/ANSI 372
Stem Type
Blowout Resistant
Seal Material
FKM
Special Features
Actuator Compatible
Vacuum Service Rating
Not Rated
Connection Gender - Side 2
Female
Color - Valve Handle
Red
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
34 Degrees F
Connection Gender - Side 1
Female
Connection Type - Side 2
Socket
Coefficient of Volume (Cv)
8
Handle - Locking
Locking
Connection Type - Side 1
True-Union Socket/True-Union NPT
Maximum Pressure - Combustible Gas
Not Rated
NSF Certifications for Food and Drinking Water
NSF 61
Included Mounting
ISO 5211 Actuator Mounting Pad
Operating Temperature - Maximum
140 Degrees F
Valve Series
TBH
Green Certification or Other Recognition
RoHS 2011/65/EU Compliant
Valve Construction
Three-Piece
Manufacturer Warranty
3 yr
Valve Body Style
Straight
Maximum Pressure - Operating
250 psi

Description

Manual Two-Way Ball Valve, Body Material PVC, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material PVC, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Tee
