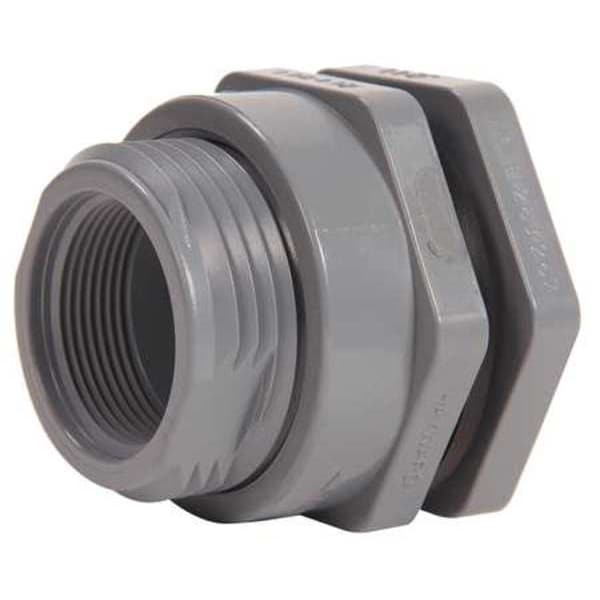

Bulkhead Fitting, 3", CPVC/EPDM, Socket x FPT
Mfr # BFAS2030CES
Zoro # G4198354
product price:Â
$
112.99
/ea
Free Shipping & Returns
Key Features
Body Material
CPVC
Pipe Size
3 in
Connection Type
FNPT x Socket
Required Hole Size
4 1/2 in
Gasket Material
EPDM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BFAS2030CES
- Zoro #
- G4198354
- UPC #
- 610377137249
- Country of Origin
- China
- Item
- Bulkhead Tank Fitting
- Body Material
- CPVC
- Connection Type
- FNPT x Socket
- Gasket Material
- EPDM
- Max. Pressure
- 150 psi
- Pipe Fitting Connection Type
- FNPT x Socket
- Basic Pipe Fitting Material
- Plastic
- Pipe Fitting Material
- CPVC
- Color
- White
- Temp. Range
- 40 Degrees to 190 Degrees F
- Fitting Connection Type
- FNPT x Socket
- Inside Connection Type
- Socket
- Maximum Operating Pressure
- 150 psi
- Fitting Material
- CPVC
- Standards
- NSF/ANSI 372, NSF/ANSI 61
- Minimum Operating Temperature
- 40 Degrees F
- For Tank Shape
- Curved, Flat
- Outside Connection Gender
- Female
- Number of Bolt Holes
- 0
- Outside Connection Type
- Threaded
- Inside Connection Gender
- Female
- Maximum Operating Temperature
- 190 Degrees F
- Outside Thead Type
- NPT
- Mount Type
- Through-Wall
Description
Bulkhead Tank Fitting, Fitting Material CPVC, Fitting Material Finish Not Applicable, Fitting Material Grade Not Applicable, For Tank Shape Curved, Flat, Gasket Material EPDM, Inside Connection Gender Female, Inside Connection Size 3 in, Inside Connection Type Socket, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 190 Degrees F, Minimum Operating Temperature 40 Degrees F, Number of Bolt Holes 0, Outside Connection Gender Female, Outside Connection Size 3 in
