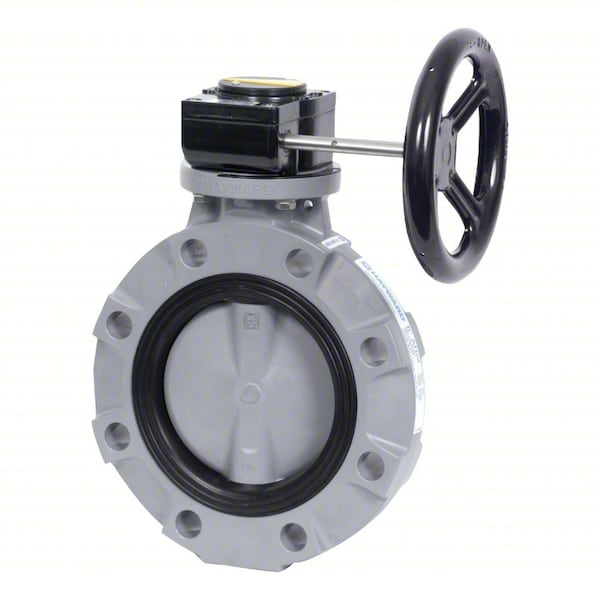

Shop HAYWARD FLOW CONTROL

Butterfly Vallve

  • Mfr # BYV22100A0NG000

  • Zoro # G014385770

product price:
$
2,898.99
/ea
Free Shipping & Returns

Key Features

Body Material
CPVC
Handle Type
Gear Operated Handwheel
Seal Material
Buna-N
Disc Material
CPVC
Liner Material
Buna-N
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BYV22100A0NG000
Zoro #
G014385770
UPC #
0610377261791
Country of Origin
United States
Item
Butterfly Valve
Body Material
CPVC
Handle Type
Gear Operated Handwheel
Seal Material
Buna-N
Disc Material
CPVC
Liner Material
Buna-N
Standards
ANSI B16.10/ISO 5752, NSF/ANSI 372, NSF/ANSI 61
Handle Material
Glass-Filled Polypropylene
Includes Disc Position Indicator
Disc Position Indicator Included
3-A Standard Compliance
Not Rated
Maximum Pressure - Operating
150 psi
NSF Certifications for Food and Drinking Water
NSF 61
For Media
Corrosive Chemicals, Water
Disc Alignment
Concentric
Operating Temperature - Maximum
70 Degrees F
ANSI Flange Class
Class 150
Coefficient of Volume (Cv)
4,723
Connection Type
Grooved
Maximum Pressure - Steam
Not Rated
Stem Material
316 Stainless Steel
Manufacturer Warranty
3 yr
Number of Flange Bolt Holes
12
Number of Stop Positions
19
Operating Temperature - Minimum
34 Degrees F
Handle - Locking
Locking
Valve Series
BYV

Description

Butterfly Valve, Body Material CPVC, Liner Material Buna-N, Disc Material CPVC, Handle Type Gear Operated Handwheel, Standards ANSI B16.10/ISO 5752, NSF/ANSI 372, NSF/ANSI 61
