Shop HAYWARD FLOW CONTROL

Manual 2-Way Ball Valve, NPTF, PVC

  • Mfr # LC12

  • Zoro # G407963714

product price:
$
35.15
/ea

Key Features

Ball Material
PVC
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC12
Zoro #
G407963714
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4 in
Overall Length
2.1 in
Nominal Valve Size
1/4 in
Handle Height
1.51 in
Handle Length
1.76 in
Connection Size - Side 2
1/4 in
Connection Size - Side 1
1/4 in
Wire Rope Length
2.1 in
Length
2.1 in

Details

Ball Material
PVC
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
For Media
Corrosive Chemicals, Water
Connection Type
FPT x FPT; FPT x Hose; FPT x MPT; Hose x Hose; MPT x Hose; MPT x MPT
Item
Manual Two-Way Ball Valve
Body Material
PVC
Handle Type
Tee
Max. Pressure
150 PSI
Standards
ASTM D1784 Cell Class 12454, NSF/ANSI 372
Features

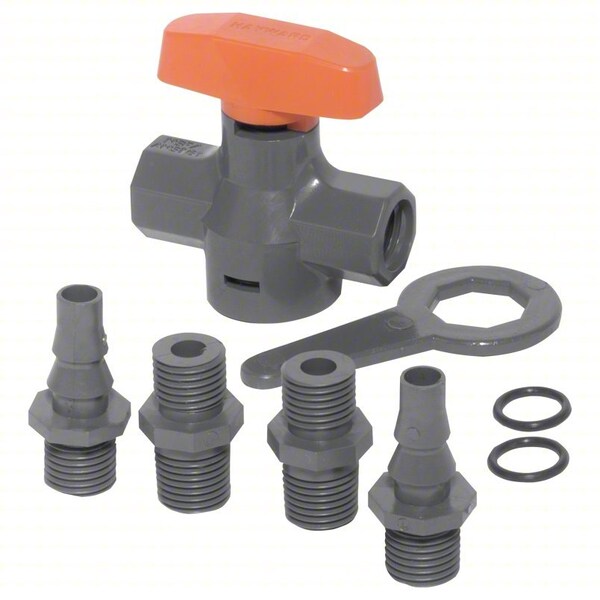

Fine Control of Flow, Hex Wrench Included for End Connection Installation, Ideal for Laboratory Service, Six End Connections in One Package, Superior Sealing Design
Compliance
ANSI 372, ANSI 61, NSF
Seat Material
EPDM
Handle Material
PVC
Stem Material
PVC
Seal Material
EPDM
Connection Gender - Side 2
Female
Operating Temperature - Minimum
34 Degrees F
Connection Gender - Side 1
Female
Maximum Pressure - Combustible Gas
Not Rated
Color - Valve Handle
Red
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
140 Degrees F
Coefficient of Volume (Cv)
2.25
Handle - Locking
Non-Locking
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Connection Type - Side 2
NPT
NSF Certifications for Food and Drinking Water
NSF 61
Maximum Pressure - Steam
Not Rated
Connection Type - Side 1
NPTF
Valve Construction
One-Piece
Maximum Pressure - Operating
150 psi
Valve Body Style
Straight

Description

Manual Two-Way Ball Valve, Body Material PVC, For Media Corrosive Chemicals, Water, Valve Construction One-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material PVC, Ball Port Style Standard Port, Handle - Locking Non-Locking, Handle Type Tee

Restrictions
