Shop HAYWARD FLOW CONTROL

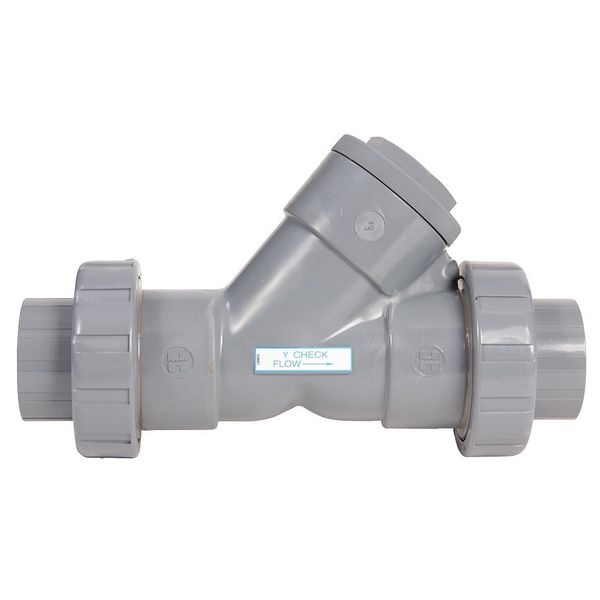

Y-Check Valve, True Union, 1-1/4", CPVC/FPM, Socket

  • Mfr # YC20125SU

  • Zoro # G7067986

product price:
$
659.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/4"
Hex Size
2 in
Connection Type
socket
Connection
Threaded
Body Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YC20125SU
Zoro #
G7067986
UPC #
610377108188
Country of Origin
United States

Dimensions

Pipe Size
1 1/4"
Hex Size
2 in
Length
13 1/64 in
Width
4 3/4 in
Pipe or Tube Size - Check Valves
1 1/4 in
Overall Height
6 7/8 in
Size
1 1/4"
Overall Length
13.01 in
Pipe or Tube Size
1 1/4 in
Connection Size - Side 1
1 1/4 in
Height - Cap to Inlet Center
4 5/8 in
Nominal Valve Size
1 1/4 in
Connection Size - Side 2
1 1/4 in
Wire Rope Length
13.01 in

Details

Connection Type
socket
Connection
Threaded
Body Material
PVC
Item - Check Valves
Check Valve
Item
True Union Y Check Valve
Seal Material - Check Valves
FPM
Flow
26 gpm
Cap to Inlet Center
4 5/8 in
Flow - Valves
26.0 gpm
Application - Valves
General Purpose
Cracking Pressure
3 psi
Flow Design
Single
Max. Water Pressure - Valves
150 psi @ 70 Degrees F
Max. Pressure
150 psi @ 70 Degrees F
Seal Material
FKM
Body Material - Valves
PVC
Full Flow - Valves
Yes
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Temp. - Valves
140 Degrees F
Max. Temp.
190 Degrees F
Seat Material - Check Valves
FPM
Connection Type - Check Valves
Socket x Socket
Mounting Position
Vertical or Horizontal
Max. Steam Pressure - Valves
Not Rated
Mechanism and Body Design
Y True Union
Sub-Category
PVC
Max. Water Pressure
150 psi @ 70 Degrees F
Min. Temp. - Valves
40 Degrees F
Cracking Pressure - Check Valves
1.0 psi
Seat Material
FKM
Material of Construction
PVC
Standards
ASTM D1784
Mounting Orientation
Horizontal, Vertical
Seal
FPM
Type
True Union
Connection Gender - Side 1
Female
Valve Body Style
Y-Style
Includes Counterweight
No Counterweight
Connection Type - Side 2
Socket
Maximum Pressure - Operating
150 psi
3-A Standard Compliance
Not Rated
Check Mechanism Material
CPVC
Check Mechanism
Piston
Silent Check
Standard
Connection Gender - Side 2
Female
For Media
Water
Manufacturer Warranty
3 yr
Operating Temperature - Maximum
190 Degrees F
Operating Temperature - Minimum
34 Degrees F
Connection Type - Side 1
Socket
Coefficient of Volume (Cv)
26
Maximum Pressure - Steam
Not Rated
Vacuum Service Rating
Not Rated
Valve Series
YC

Description

HAYWARD FLOW CONTROL YC20125SU is a 1-1/4 in true union Y-check valve with a Y-style body, piston check mechanism, and Y-pattern body configuration for one-way flow control in general-purpose water service. The true union design allows the valve to be removed from the line for cleaning, inspection, or replacement. This valve features socket x socket female connections and can be mounted horizontally or vertically.

Key Features:

  • Valve type: True union Y-check valve
  • Nominal size: 1-1/4 in
  • Body material: PVC
  • Check mechanism: Piston, CPVC
  • Seal and seat material: FPM
  • Connections: Socket x socket, female x female
  • Flow design: Single; full flow: Yes
  • Flow capacity: 26 gpm; Cv: 26
  • Cracking pressure: 1.0 psi
  • Maximum water pressure: 150 psi at 70 degrees F
  • Operating temperature range: 34 degrees F to 190 degrees F
  • Mounting orientation: Horizontal, vertical
  • Overall size: 13.01 in L x 6 7/8 in H x 4 3/4 in W
  • Standard: ASTM D1784
