Shop HAYWARD FLOW CONTROL

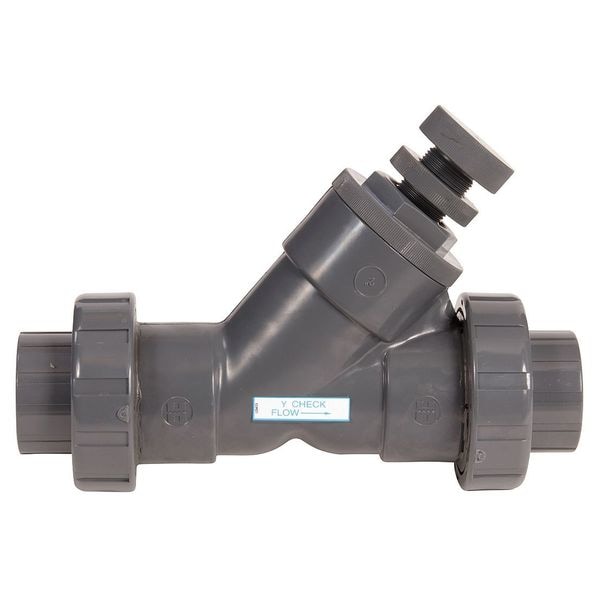

Y-Check Valve, True Union, Spring-Loaded, 2", PVC/EPDM, Socket, Adjustable 2-15 psi

  • Mfr # SLC10200SEU

  • Zoro # G7100204

product price:
$
502.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Hex Size
2 3/8 in
Connection Type
socket
Connection
Socket
Body Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SLC10200SEU
Zoro #
G7100204
UPC #
610377098434
Country of Origin
United States
Connection Type
socket
Connection
Socket
Body Material
PVC
Cracking Pressure
2 to 15 psi
Cap to Inlet Center
7 7/16 in
Flow Design
Single
Seat Material
EPDM
Max. Steam Pressure - Valves
Not Rated
Sub-Category
PVC
Max. Temp.
140 Degrees F
Seal Material
EPDM
Mechanism and Body Design
Y Spring
Flow - Valves
65.0 gpm
Application - Valves
General Purpose
Seal Material - Check Valves
EPDM
Max. Water Pressure
150 psi @ 70 Degrees F
Max. Water Pressure - Valves
150 psi @ 70 Degrees F
Flow
65 gpm
Connection Type - Check Valves
Socket x Socket
Min. Temp. - Valves
40 Degrees F
Max. Pressure
150 psi @ 70 Degrees F
Body Material - Valves
PVC
Max. Temp. - Valves
140 Degrees F
Spring Material - Check Valves
Stainless Steel
Spring Material
PVC
Item
Spring Y Check Valve
Cracking Pressure - Check Valves
2.000 to 15.000 psi
Material of Construction
PVC
Mounting Orientation - Check Valves
Horizontal, Vertical
Item - Check Valves
Check Valve
Mounting Position
Vertical or Horizontal
Seat Material - Check Valves
EPDM
Standards
ASTM D1784
Mounting Orientation
Horizontal, Vertical
Seal
EPDM
Type
Spring Loaded
Check Mechanism
Piston
Operating Temperature - Minimum
40 Degrees F
Includes Counterweight
No Counterweight
Silent Check
Standard
Coefficient of Volume (Cv)
65
Maximum Pressure - Steam
Not Rated
3-A Standard Compliance
Not Rated
Vacuum Service Rating
Not Rated
Manufacturer Warranty
3 yr
Connection Gender - Side 2
Female
Operating Temperature - Maximum
70 Degrees F
Connection Type - Side 2
Union Socket
Valve Body Style
Y-Style
Connection Gender - Side 1
Female
Check Mechanism Material
PVC
Connection Type - Side 1
Union Socket
For Media
Water
Maximum Pressure - Operating
150 psi
Valve Series
SLC

Description

HAYWARD FLOW CONTROL SLC Series SLC10200SEU is a 2 in. spring-loaded Y-check valve with a true union PVC body and socket x socket connections. It is for general-purpose water service and is configured for one-way flow applications with a spring-loaded check mechanism. The Y-style body and piston check mechanism are configured for inline installation in horizontal or vertical mounting positions, with an adjustable cracking pressure range of 2 to 15 psi.

Key Features:

  • 2 in. nominal valve size with female union socket connections on both ends
  • Spring-loaded Y-check valve with Y-style body and one-way flow configuration
  • PVC body and check mechanism with EPDM seal and seat materials
  • Media: Water
  • Adjustable cracking pressure: 2 to 15 psi
  • Maximum pressure: 150 psi at 70 degrees F
  • Operating temperature range: 40 degrees F to 140 degrees F
  • Flow capacity: 65 gpm; Cv: 65
  • Mounting orientation: Horizontal or vertical
  • Standard: ASTM D1784
