  9. Flowmeter, 1 MNPT, 0.5-4 GPM
Shop All Flowmeters
Hedland

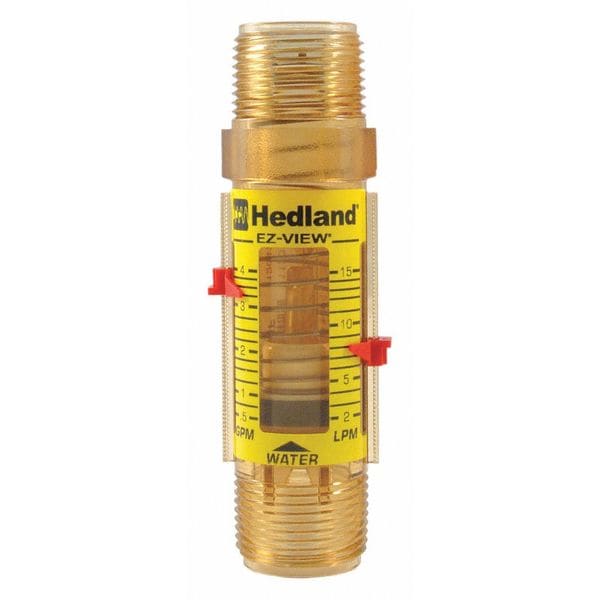

Flowmeter, 1 MNPT, 0.5-4 GPM

product price: $103.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material PPSU
  • Type Variable Area
  • For Pipe Size 1 in
  • Flow Material Water
  • Connection Size 1 in
See all product information

Product Information

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Width 1 3/4 in
Length 5 1/4 in
Connection Size (In.) 1 MNPT
Height 1 3/8 in
Width (In.) 1-3/4"
Manufacturers Warranty Length 1 yr
Length (In.) 5-1/4"
Height (In.) 1-3/8
Manufacturer Warranty Length 1 yr
Overall Length 5.3 in
Overall Height 1.4 in
Overall Width 1.7 in

Details

Item Mechanical Flowmeter
Housing Material PPSU
Type Variable Area
Flow Material Water
Connection Type NPTF
Max. Pressure 325 psi
Max. Viscosity 500 SUS
Wetted Materials Buna-N, C360 Brass, PH15-7MO Stainless Steel, Polysulfone, PVC, Strontium, T300 Stainless Steel
Flow Range 0.5 to 4 gpm
Fluid Temp. Range 32 Degrees to 250 Degrees F
Fitting Polysulfone
Flow Range @ GPM/LPM 0.5 to 4 / 2 to 15
Flow Range @ GPM of Water 0.5-4
Flow Range (GPM) .5-4
Pressure Drop - 100% Flow (PSI) 2.25 psi
Max. Temp. (F) 250
Seal Material Buna-N
GPM Max. 4 gpm
Specific Gravity 1
Accuracy (%) 5%
Chamber Material Radel(R)
Max. Pressure (PSI) 325
Display Type Scale
Standards ANSI/ASME B1.20.1
Product Type Flow Meter
Flow Rate - Minimum 0.5 gpm
Includes Pressure Gauge No
Flowmeter Type Variable Area
Flow Rate - Maximum 4 gpm
Wetted Material PSU
Media Temperature - Minimum 32 Degrees F
Media Temperature - Maximum 250 Degrees F
Viscosity - Maximum 500 SUS
Includes Flow Rate Adjustment Knob No
O-Ring Material Buna-N
Compatible Flow Material Water
Mounting Orientation Universal
Includes Totalizer No
Accuracy +/-5%
Operating Pressure - Maximum 325 psi
Unit Of Measure Gallons, Liters

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-5 Percent, Connection Size 1 in, Connection Type NPTF, Compatible Flow Material Water, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 500 SUS, Voltage - Maximum Not Applicable, Housing Material PPSU, Rotor Material Not Applicable, O-Ring Material Buna-N, Seal Material Buna-N, Shaft Material Not Applicable, Wetted Material PSU
